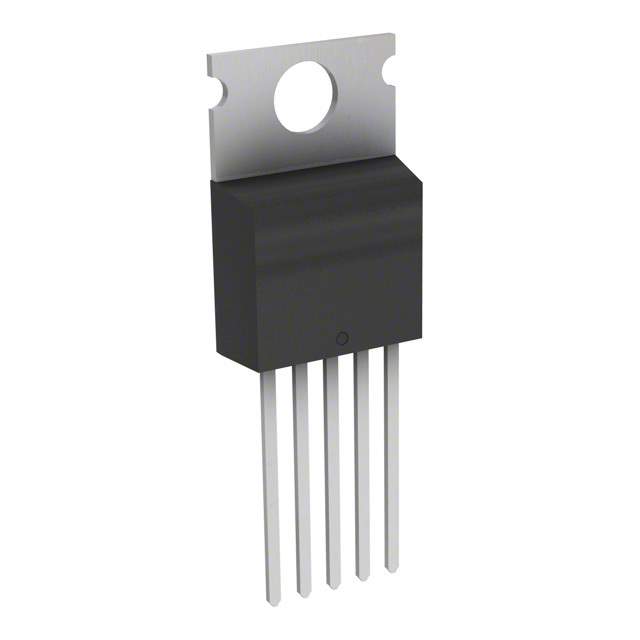

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer IXYS
Packaging Tube
Driven Configuration Low-Side
Channel Type Single
Number of Drivers 1
Gate Type IGBT, N-Channel, P-Channel MOSFET
Supply Voltage (V) 4.5V ~ 35V
Logic Voltage - VIL, VIH 0.8V, 3V
Current - Peak Output (Source, Sink) 14A, 14A
Input Type Non-Inverting
Rise / Fall Time 25ns, 18ns
Temperature Range - Operating -55°C ~ 150°C
Mounting Style Through Hole
Manufacturer Package TO-220-5
Supplier Device Package TO-220-5
Manufacturer Pack Quantity 50
MSL Level 1 (Unlimited)
Win Source Part Number 1190954-IXDD614CI
Manufacturer Homepage www.clare.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian IXDD614CI CAD Model

Description

IXDD614CI is a single channel low-side gate driver IC from IXYS, designed for use in IGBT, N-Channel, and P-Channel MOSFET gate driving applications.

  • Peak Output Current: 14A
  • Input Voltage Range: 0.8V to 3V
  • Driven Configuration: Low-side
  • Package Type: TO-220-5
  • Rise Time: 25ns
  • Fall Time: 18ns
  • Operating Temperature Range: -55°C to 150°C
  • Supply and Demand Status: Limited
  • Pack Quantity: 50
