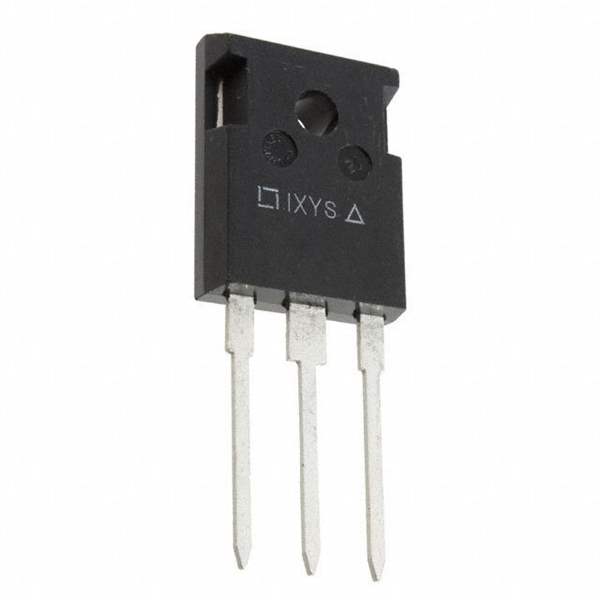

DSSK60-02A IXYS DSSK60-02A Real Image
Same model may have multiple batches, images only for reference.
DSSK60-02A IXYS DSSK60-02A Real Image
DSSK60-02A IXYS DSSK60-02A Real Image
Same model may have multiple batches, images only for reference.

DSSK60-02A

Part No DSSK60-02A
Manufacturer IXYS
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 200V TO247
Datasheet
DSSK60-02A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 850mV @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 2mA @ 200V
Operating Temperature - Junction -55°C to 175°C
Mounting Through Hole
Case / Package TO-247AD
Win Source Part Number 1035499-DSSK60-02A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DSSK60-02A CAD Model

Description

The DSSK60-02A is a Schottky diode manufactured by IXYS.

  • Configuration: 1 pair common cathode
  • Maximum DC Reverse Voltage: 200V
  • Maximum Forward Voltage: 850mV @ 30A
  • Current Reverse Leakage: 2mA @ 200V
  • Average Rectified Current: 30A per diode
  • Mounting Type: Through Hole
  • Packaging: Tube/Rail
  • Operating Temperature: -55 degrees Celsius to 175 degrees Celsius
  • Ideal for: Use in discrete semiconductor products
