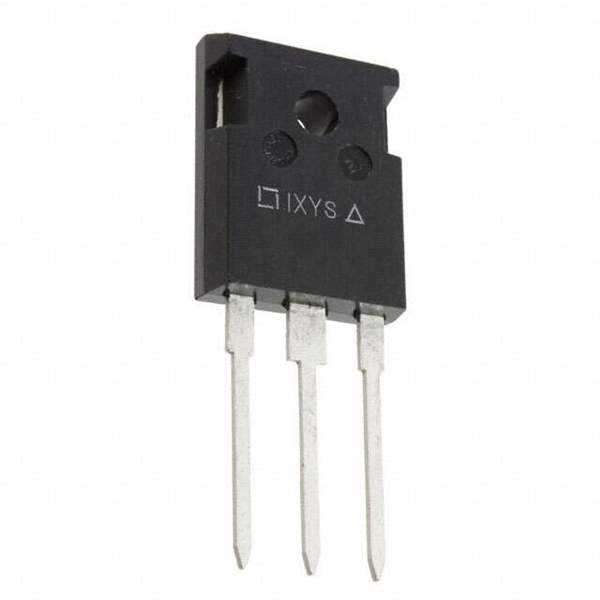

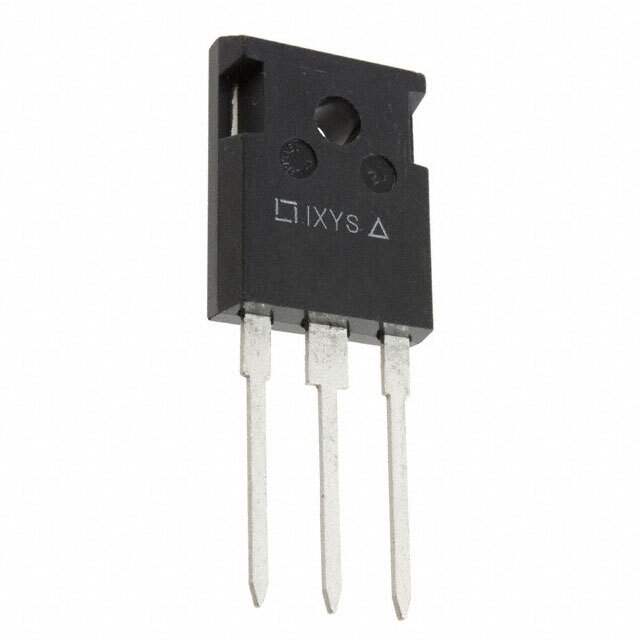

DSEC60-03A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer IXYS
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 300V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 1.25V @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage @ Vr 10μA @ 300V
Operating Temperature - Junction -55°C to 175°C
Mounting Through Hole
Case / Package TO-247AD
Win Source Part Number 142883-DSEC60-03A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian DSEC60-03A CAD Model

Description

DSEC60-03A Description

The DSEC60-03A is a highly efficient power diode, perfect for applications requiring rapid switching and low forward voltage drop.

Features and Benefits

  • Reverse Voltage: 300V for medium voltage applications.
  • Current Rating: 60A catering to high current demands.
  • Fast recovery time for reduced power losses.

Applications

  • DC-DC converters
  • Inverter circuits
  • Welding equipment

Additional Details

The DSEC60-03A enhances efficiency and performance in power electronics applications, ensuring effective heat management and long-lasting reliability.
