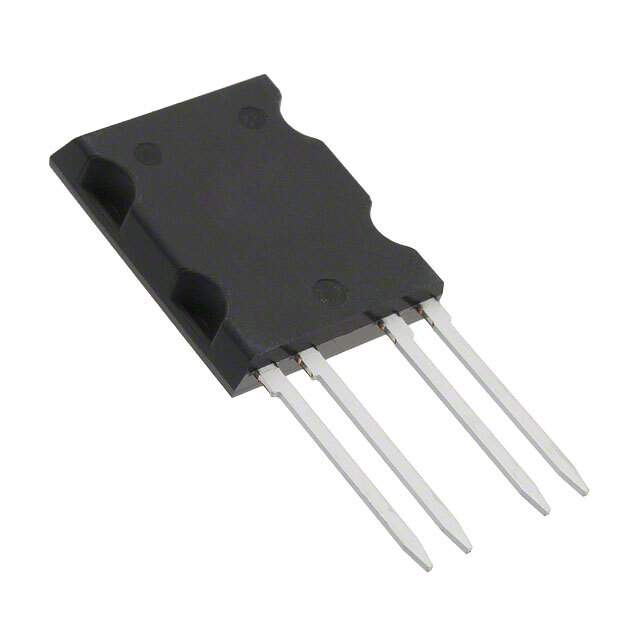

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number 3000001032-CPC1909J
Manufacturer IXYS Integrated Circuits Division
Category Relays -Solid State Relays
Series CPC, OptoMOS®
Package Bulk
Package / Case ISOPLUS264™
Supplier Device Package ISOPLUS264™
On-State Resistance (Max) 100 mOhms
Base Product Number CPC1909
Output Type AC, DC
Circuit SPST-NO (1 Form A)
Ultra Librarian 3D Model Ultra Librarian CPC1909J CAD Model

Description

The CPC1909 is a solid-state relay offered by IXYS Integrated Circuits Division. This relay is a part of the CPC, OptoMOS® series and comes in a bulk package. It has an AC and DC output type with a circuit of SPST-NO (1 Form A). The CPC1909 has an on-state resistance of 100 mOhms and comes in an ISOPLUS264™ package. The CPC1909 is designed for relay applications.
