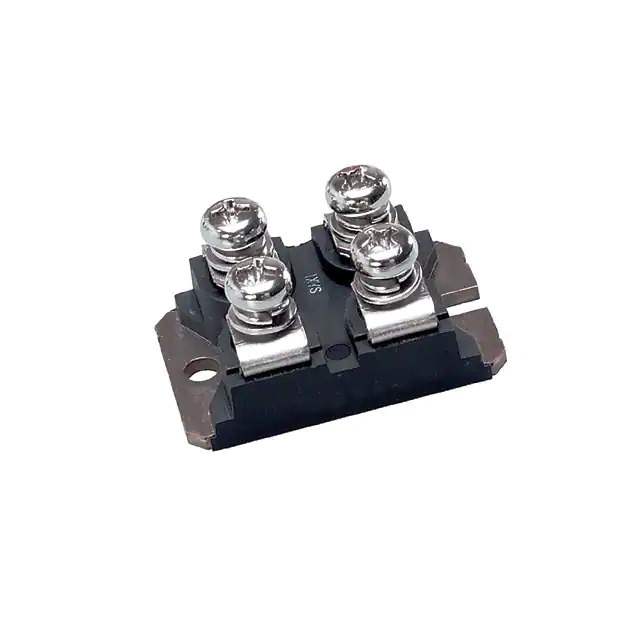

CMA80PD1600NA

Part No CMA80PD1600NA
Manufacturer IXYS
Catalog TVS - Thyristors
Description MOD THYRISTOR DUAL 1600V SOT-227
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Thyristors - SCRs - Modules
Mfr IXYS
Package Tube
Product Status Active
Structure Series Connection - SCR/Diode
Number of SCRs, Diodes 1 SCR, 1 Diode
Voltage - Off State 1.6 kV
Current - On State (It (AV)) (Max) 80 A
Current - On State (It (RMS)) (Max) 126 A
Voltage - Gate Trigger (Vgt) (Max) 1.5 V
Current - Gate Trigger (Igt) (Max) 100 mA
Current - Non Rep. Surge 50, 60Hz (Itsm) 1070A, 1160A
Current - Hold (Ih) (Max) 200 mA
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Chassis Mount
Package / Case SOT-227-4, miniBLOC
Base Product Number CMA80
Standard Package 10 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.30.0080
California Prop 65 Warning Information
Win Source Part Number 846984-CMA80PD1600NA
Ultra Librarian 3D Model Ultra Librarian CMA80PD1600NA CAD Model

Description

The CMA80PD1600NA is a thyristor SCR module designed for high-power applications.

  • Maximum Off-State Voltage: 1.6kV
  • Gate Trigger Voltage: 1.5V
  • Maximum On-State Current: 80A
  • Non-Repetitive Surge Current: 1070A
  • Connection: Series connection of an SCR and a diode
  • Mounting: Chassis mountable
  • Temperature Range: -40°C to 150°C
  • Applications: Industrial, automotive, and other high-power applications
