Same model may have multiple batches, images only for reference.

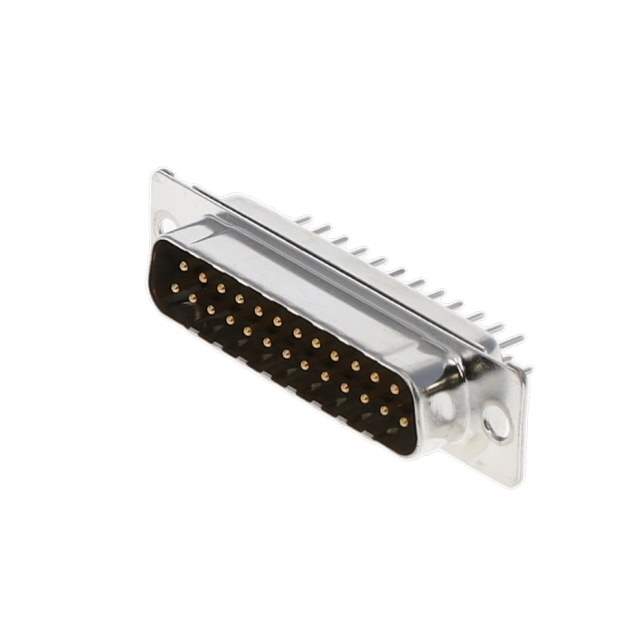

DB-25P-OL2-K87 Real Image
Same model may have multiple batches, images only for reference.

DB-25P-OL2-K87

Part No DB-25P-OL2-K87
Manufacturer ITT Cannon, LLC
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB PLUG 25P PNL MNT SLDR / 25 Position D-Sub Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr ITT Cannon, LLC
Series Original D
Package Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Mounting Type Panel Mount, Through Hole
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 7.5A
Features Grounding Indents
Color Black
Contact Form Machined
Dielectric Material Polycyclohexylenedimethylene Terephthalate (PCT)
Wire Gauge 20-28 AWG
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 125°C
Standard Package 56
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4030
Win Source Part Number 1337257-DB-25P-OL2-K87
Ultra Librarian 3D Model Ultra Librarian DB-25P-OL2-K87 CAD Model

Description

The ITT Cannon, LLC 1337257-DB-25P-OL2-K87 D-sub connector assembly is a plug with male pins that is designed for panel mounting.

  • Color: Black
  • Grounding: Indents
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Current Rating: 7.5A
  • Temperature Range: -55°C to 125°C
  • Mounting Type: Through Hole
  • Series: Original D
  • Positions: 25
  • Packaging: Bulk
  • Material: Steel
  • Shell Finish: Tin Plated
