The IS31FL3235A-QFLS2-TR is a highly integrated LED driver from ISSI (Integrated Silicon Solution Inc.). It is designed for driving multiple LEDs with independent brightness control, making it suitable for a wide range of display and lighting applications. This driver features a PWM (Pulse Width Modulation) interface for precise dimming control and includes built-in protection features for enhanced reliability.

Applications:

• RGB backlighting: Ideal for backlighting LCD displays in smartphones, tablets, and other portable devices.
• Decorative lighting: Used in ambient lighting, indicator lights, and decorative LED displays.
• Automotive lighting: Suitable for automotive interior lighting, such as dashboard illumination and accent lighting.
• Gaming peripherals: Employed in keyboards, mice, and other gaming accessories for customizable LED lighting effects.
• General LED lighting: Can be used in various LED lighting applications requiring precise brightness control.

Features:

• Multiple LED channels: Drives multiple LEDs with independent current control.
• PWM dimming: Provides precise brightness control with PWM dimming.
• I2C interface: Allows for easy configuration and control via I2C communication.
• Built-in protection: Includes over-voltage, over-current, and short-circuit protection.
• Low power consumption: Designed for efficient power management.

Benefits:

• Enhanced display quality: Precise dimming control ensures consistent and vibrant LED backlighting.
• Flexible design: Multiple LED channels allow for customized lighting effects.
• Increased reliability: Built-in protection features prevent damage from electrical faults.
• Simplified control: I2C interface enables easy integration with microcontrollers and other system components.
• Energy efficient: Low power consumption extends battery life in portable devices.

Additional Details:

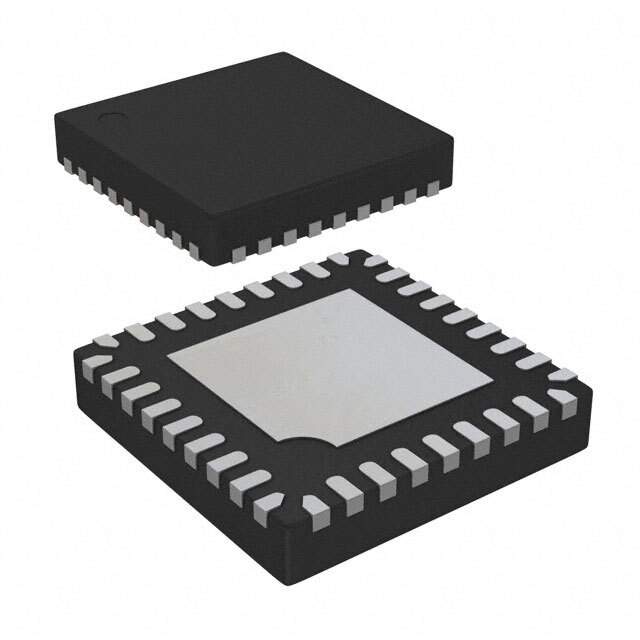

The IS31FL3235A-QFLS2-TR operates from a supply voltage range of 2.7V to 5.5V and can drive LEDs with a current of up to 25mA per channel. It is available in a QFN (Quad Flat No-leads) package, which provides excellent thermal performance and a small footprint. The device also includes features such as LED open and short detection. The PWM dimming frequency is adjustable, allowing for optimization of LED performance and visual appearance. The QFLS2 package has dimensions appropriate for surface mount assembly and offers good heat dissipation characteristics.
