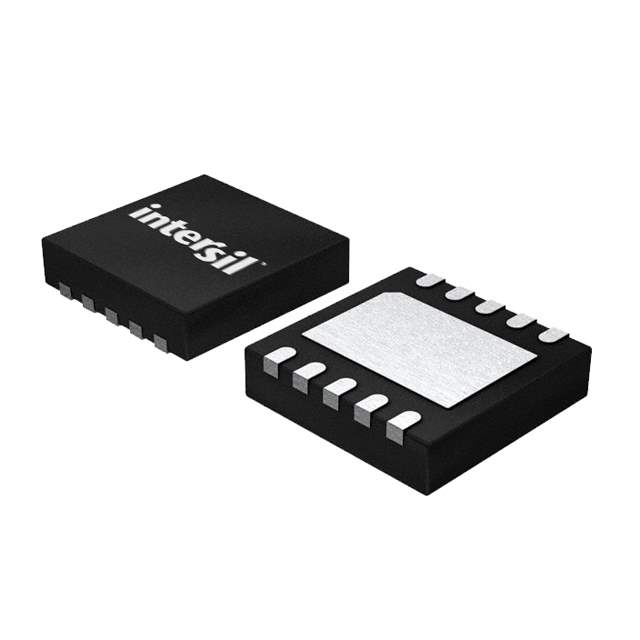

PX3511BDDG-RA Real Image
Same model may have multiple batches, images only for reference.

PX3511BDDG-RA

Part No PX3511BDDG-RA
Manufacturer Intersil
Catalog PMIC - Gate Drivers
Description IC DRVR SYNC BUCK HF 10-DFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Intersil
Packaging Reel - TR
Status Obsolete(EOL)
Driven Configuration Half-Bridge
Channel Type Synchronous
Number of Drivers 2
Gate Type N-Channel MOSFET
Supply Voltage - Operating 10.8 V to 13.2 V
Current - Peak Output (Source, Sink) 1.25A, 2A
Input Type Non-Inverting
High Side Voltage - Max (Bootstrap) 36V
Rise and Fall Time 26ns, 18ns
Temperature Range - Operating 0°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 10-DFN (3x3)
Win Source Part Number 1090836-PX3511BDDG-RA
Popularity Medium
Supply and Demand Status Balance
Quantity per package 6k pcs
Ultra Librarian 3D Model Ultra Librarian PX3511BDDG-RA CAD Model

Description

The PX3511BDDG-RA electronic component is manufactured by Intersil.

  • Product Type: Integrated Circuit
  • Channel Type: Half-Bridge Synchronous
  • Input Type: Non-Inverting
  • Drivers: Two
  • Gate Type: N-Channel MOSFET
  • Logic Voltage - VIL, VIH: Unspecified
  • Packaging: Reel - TR
  • Mounting: SMD (SMT)
  • High Side Voltage - Max (Bootstrap): 36V
  • Status: Obsolete (EOL)
  • Temperature Range - Operating: 0°C to 125°C (TJ)
  • Case/Package: 10-DFN (3x3)
  • Supply Voltage - Operating Range: 10.8 V to 13.2 V
  • Rise Time: 26ns
  • Fall Time: 18ns
  • Supply and Demand Status: Balanced
  • Quantity per Package: 6k pcs
  • Win Source Part Number: 1090836-PX3511BDDG-RA
