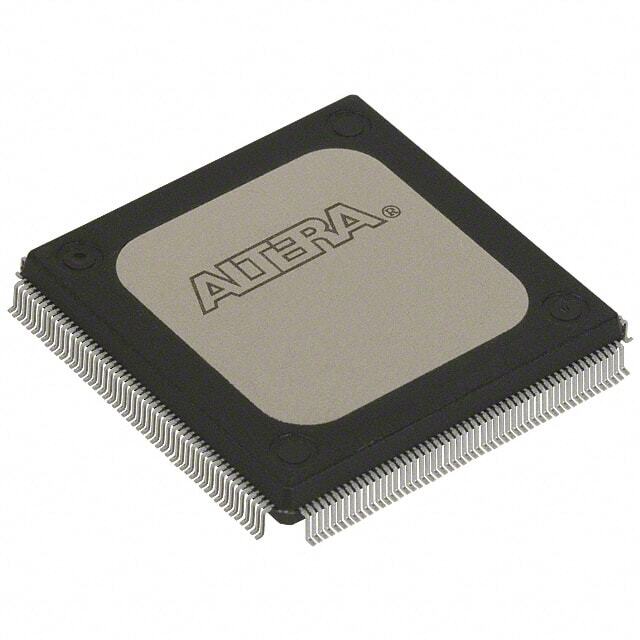

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - CPLDs (Complex Programmable Logic Devices)
Mfr Intel
Series MAX® 7000S
Package Tray
Product Status Obsolete
Programmable Not Verified
Programmable Type In System Programmable
Delay Time tpd(1) Max 10 ns
Voltage Supply - Internal 4.75V ~ 5.25V
Number of Logic Elements/Blocks 16
Number of Macrocells 256
Number of Gates 5000
Number of I/O 164
Temperature Range - Operating 0°C ~ 70°C (TA)
Mounting Type Surface Mount
Package / Case 208-BFQFP Exposed Pad
Supplier Device Package 208-RQFP (28x28)
Base Product Number EPM7256
Standard Package 24 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 846951-EPM7256SRC208-10
Ultra Librarian 3D Model Ultra Librarian EPM7256SRC208-10 CAD Model

Description

The 846951-EPM7256SRC208-10 is an embedded complex programmable logic device (CPLD) from the MAX 7000S series.

  • Series: MAX 7000S
  • Package: Tray
  • Standard Package: 24 pieces
  • Number of I/Os: 164
  • Programmable: Yes (Verification Not Available)
  • Number of Gates: 5000
  • Maximum Delay Time: 10 ns
  • Internal Voltage Supply: 4.75V to 5.25V
  • Number of Logic Elements/Blocks: 16
  • Number of Macrocells: 256
  • Mounting Type: Surface Mount
  • Package/Case: 208-BFQFP Exposed Pad
  • Supplier Device Package: 208-RQFP (28x28)
  • Operating Temperature: 0°C to 70°C
  • MSL Level: 3 (168 Hours)
  • REACH: Unaffected
  • HTSUS: 8542.39.0001
  • Manufacturer: Intel
  • Status: Obsolete
