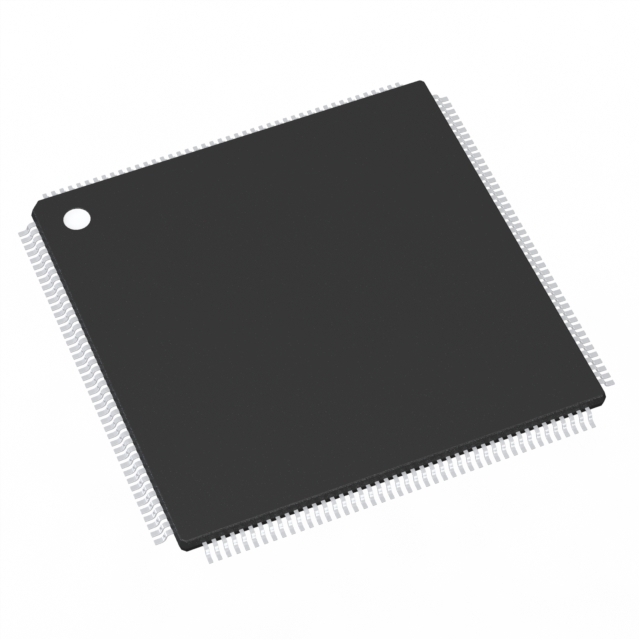

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Mfr Intel
Series Cyclone® II
Packaging Tray
Number of LABs/CLBs 288
Number of Logic Elements/Cells 4608
Total RAM Bits 119808
Number of I/O 89
Voltage - Supply 1.15V ~ 1.25V
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 125°C (TJ)
Package / Case 144-LQFP
Supplier Device Package 144-TQFP (20x20)
Base Product Number EP2C5
RoHS Status RoHS Compliant
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.31.0060
Win Source Part Number 1481290-EP2C5AT144A7N
Ultra Librarian 3D Model Ultra Librarian EP2C5AT144A7N CAD Model
