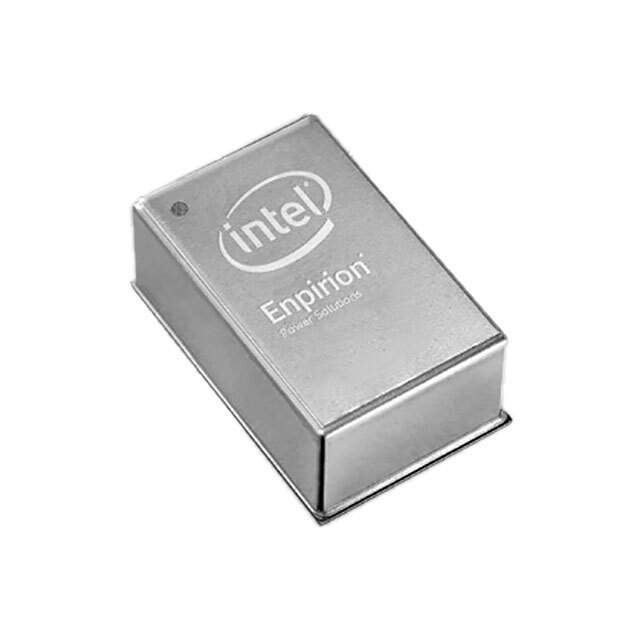

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Intel
Series Enpirion® 2030
Package Tray
Product Status Obsolete
Type Non-Isolated PoL Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 16V
Voltage - Output 1 0.5V ~ 1.325V
Current - Output (Max) 30A
Applications ITE (Commercial)
Features OCP, OTP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 90%
Mounting SMD (SMT)
Package / Case 100-PowerBQFN Module
Dimension 0.67" L x 0.43" W x 0.27" H (17.0mm x 11.0mm x 6.8mm)
Supplier Device Package 100-QFN (17x11)
Control Features Enable, Active High
Base Product Number EM2030
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 970840,544-3451
Standard Package 112
Win Source Part Number 996364-EM2030L01QI
Ultra Librarian 3D Model Ultra Librarian EM2030L01QI CAD Model

Description

The Intel EM2030L01QI is a non-isolated PoL module in the Enpirion 2030 series, designed for use in ITE (Commercial) applications.

  • Features: OCP, OTP, OVP, and UVLO
  • Efficiency: 90%
  • Mounting: power supply board mount
  • Maximum Output: 30A
  • Voltage Input Range: 4.5V to 16V
  • Voltage Output Range: 0.5V to 1.325V
  • Status: obsolete
