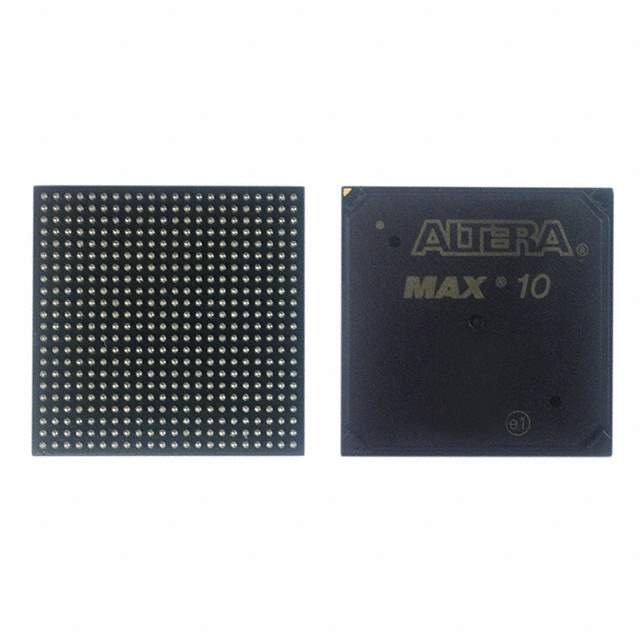

10M02SCU324C8G Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded>FPGAs (Field Programmable Gate Array)
Manufacturer Intel
Packaging Tray
Number of LABs/CLBs 125
Number of Logic Elements/Cells 2000
Total RAM Bits 110592
Number of I/O 246
Voltage - Supply 2.85V ~ 3.465V
Mounting Surface Mount
Temperature Range - Operating 0°C ~ 85°C (TJ)
Case / Package 324-LFBGA
Supplier Device Package 324-UBGA (15x15)
Moisture Sensitivity Level (MSL) 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number 544-3471,978978
Standard Package 119
Win Source Part Number 1323092-10M02SCU324C8G
Ultra Librarian 3D Model Ultra Librarian 10M02SCU324C8G CAD Model

Description

The 10M02SCU324C8G is an electronic component manufactured by Intel.

  • Type: FPGA (Field Programmable Gate Array)
  • Logic Elements/Cells: 2000
  • Total RAM bits: 110592
  • Package Size: 324-UBGA (15x15)
  • Application: Embedded applications
  • Popularity: Medium
  • Supply and Demand: Limited
  • Operating Temperature: 0 to 85 degrees Celsius
