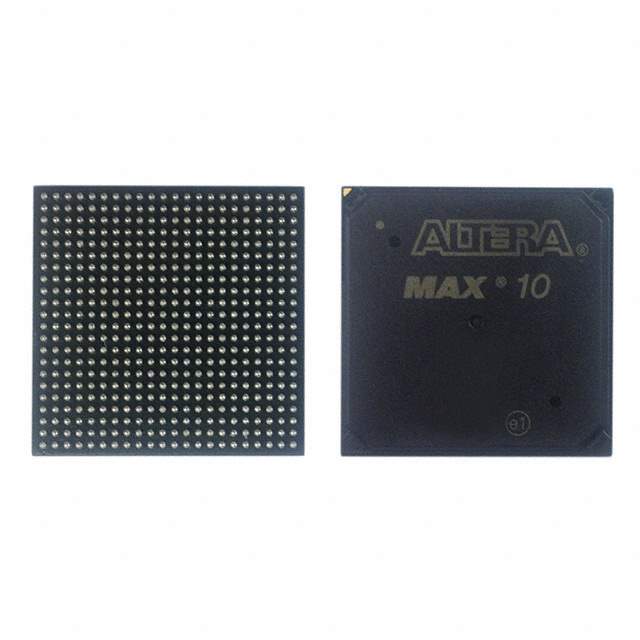

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - FPGAs (Field Programmable Gate Array)
Mfr Intel
Series MAX® 10
Package Tray
Number of LABs/CLBs 125
Number of Logic Elements/Cells 2000
Total RAM Bits 110592
Number of I/O 160
Voltage - Supply 1.15V ~ 1.25V
Mounting SMD (SMT)
Temperature Range - Operating 0°C ~ 85°C (TJ)
Package / Case 324-LFBGA
Supplier Device Package 324-UBGA (15x15)
Other Names 544-3095,968095
Standard Package 119
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 3A991D
HTSUS 8542.39.0001
Win Source Part Number 1265068-10M02DCU324C8G
Ultra Librarian 3D Model Ultra Librarian 10M02DCU324C8G CAD Model

Description

The MAX® 10 series is a group of embedded FPGAs (Field Programmable Gate Array) offered by Intel.

  • Device: 1265068-10M02DCU324C8G
  • Package: Tray
  • Standard Packages: 119
  • Mounting: SMD (SMT)
  • I/O: 160
  • LABs/CLBs: 125
  • Logic Elements/Cells: 2000
  • Total RAM Bits: 110592
  • Voltage Supply: 1.15V to 1.25V
  • Package/Case: 324-LFBGA
  • Supplier Device Package: 324-UBGA (15x15)
