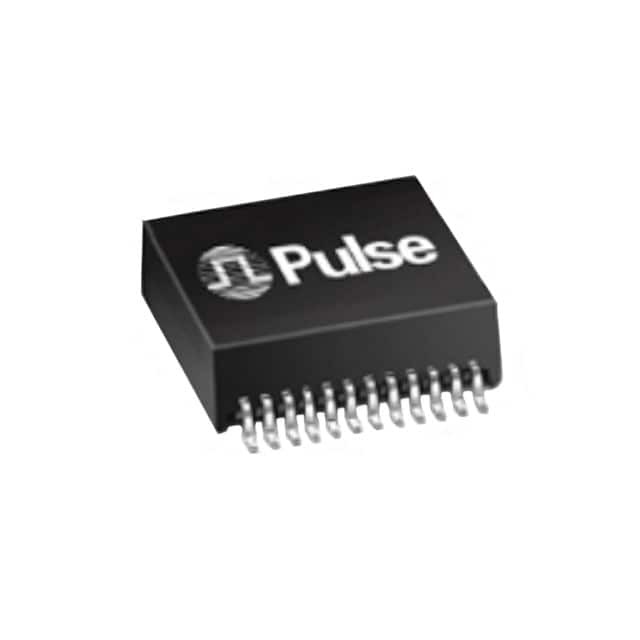

Same model may have multiple batches, images only for reference.
1000B-5002FXNL
Same model may have multiple batches, images only for reference.

1000B-5002FXNL

Part No 1000B-5002FXNL
Manufacturer iNRCORE, LLC
Catalog Pulse Transformers
Description MDL SIN 1GD 1:1 SMT TU NPB / 350μH LAN 10/100/1000 Base-T Pulse Transformer 1:1 Surface Mount
Datasheet
1000B-5002FXNL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Transformers - Pulse Transformers
Mfr iNRCORE, LLC
Package Tube
Product Status Active
Transformer Type LAN 10/100/1000 Base-T
Inductance 350µH
Mounting Type Surface Mount
Size / Dimension 0.690" L x 0.480" W (17.53mm x 12.19mm)
Height - Seated (Max) 0.235" (5.97mm)
Standard Package 25 pcs
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8504.31.2000
California Prop 65 Warning Information
Win Source Part Number 904794-1000B-5002FXNL
Ultra Librarian 3D Model Ultra Librarian 1000B-5002FXNL CAD Model

Description

The 904794-1000B-5002FXNL is a pulse transformer designed for LAN 10/100/1000 Base-T applications.

  • Application: LAN 10/100/1000 Base-T
  • Dimensions: 0.690" L x 0.480" W (17.53mm x 12.19mm)
  • Height: 0.235" (5.97mm)
  • Inductance: 350μH
  • Mounting Type: Surface Mount
  • Manufacturer: iNRCORE, LLC
  • Product Status: Active
