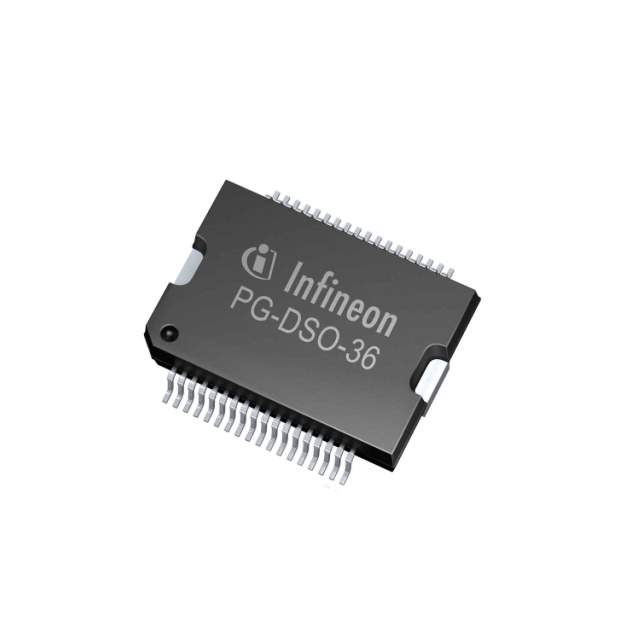

The TLE8718SA is a highly integrated system basis chip (SBC) from Infineon Technologies. It is designed for automotive applications, specifically for use in body control modules and gateway applications. The device integrates various functions, including a voltage regulator, a CAN transceiver, a LIN transceiver, and general-purpose I/Os (GPIOs), all in a single package.

Applications:

• Body Control Modules (BCM): Central control unit for various body functions, such as lighting, wipers, and door locks.
• Gateway Applications: Facilitates communication between different networks in a vehicle, such as CAN, LIN, and Ethernet.
• Automotive Lighting Control: Controls and monitors various lighting functions, including headlights, taillights, and interior lighting.
• Wiper Control Systems: Manages the operation of windshield wipers and washers.
• Door Lock Systems: Controls the locking and unlocking of doors and other access points.

Features:

• Integrated Voltage Regulator: Provides a stable power supply for the microcontroller and other peripherals.
• CAN Transceiver: Enables communication via the Controller Area Network (CAN) bus.
• LIN Transceiver: Enables communication via the Local Interconnect Network (LIN) bus.
• General Purpose I/Os (GPIO): Provides flexible input/output capabilities for various functions.
• Watchdog Timer: Monitors the microcontroller's operation and resets it in case of a fault.
• Overvoltage Protection: Protects the device from damage due to overvoltage conditions.
• Overtemperature Protection: Protects the device from damage due to excessive temperature.

Benefits:

• Reduced System Cost: Integration of multiple functions reduces the number of components required, lowering overall system cost.
• Smaller Board Size: High integration allows for a smaller PCB footprint.
• Improved System Reliability: Integrated protection features enhance system reliability.
• Simplified System Design: Integration simplifies the design process and reduces development time.
• Enhanced Communication Capabilities: Supports both CAN and LIN communication protocols.

Additional Details:

The TLE8718SA is designed to meet the stringent requirements of automotive applications, including high temperature and vibration resistance. It includes safety features to support ASIL (Automotive Safety Integrity Level) compliance. The device is available in a lead-free package and is RoHS compliant. It is typically controlled by a microcontroller, which communicates with the TLE8718SA via SPI (Serial Peripheral Interface). The device also includes diagnostic features for easy troubleshooting.
