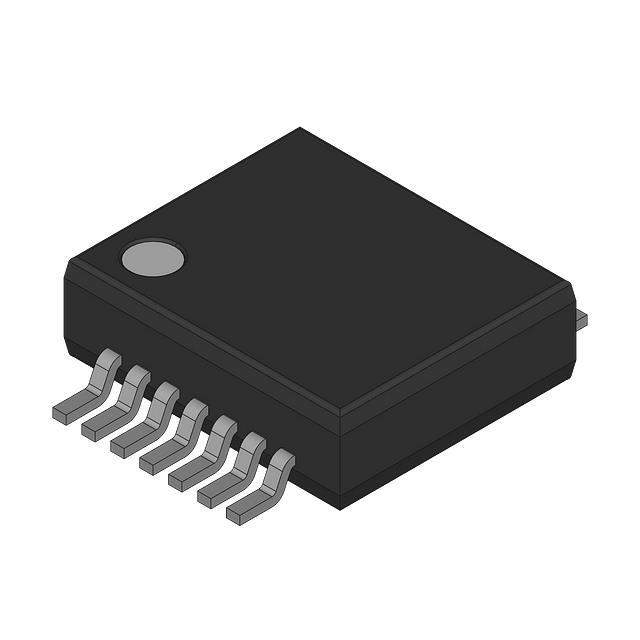

TLE75004ELDXUMA1 Real Image
Same model may have multiple batches, images only for reference.

TLE75004ELDXUMA1

Part No TLE75004ELDXUMA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC PWR DRVR N-CHAN 1:4 SSOP14-5
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Infineon Technologies
Packaging Reel
Part Status Obsolete (End Of Life)
Switch Type Relay, Solenoid Driver
Number of Outputs 4
Output Configuration Low Side
Output Type N-Channel
Interface SPI
Voltage - Load 3V ~ 28V
Voltage - Supply (Vcc/Vdd) 3V ~ 5.5V
Current - Output (Maximum) 470mA
Rds On (Typ) 1Ohm
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Temperature Range - Operating -40°C ~ 150°C
Manufacturer Package 14-LSSOP Exposed Pad
Supplier Device Package PG/SSOP-14-5
Mounting Style Surface Mount
Manufacturer Pack Quantity 2,500
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 806116-TLE75004ELDXUMA1
Ultra Librarian 3D Model Ultra Librarian TLE75004ELDXUMA1 CAD Model

Description

The Infineon Technologies TLE75004ELDXUMA1 is a relay and solenoid driver that has four outputs.

  • Outputs: Four
  • Output Configuration: Low-Side
  • Voltage Load: 3V to 28V
  • Current Output: 470mA
  • Switch Type: N-channel
  • Fault Protection: Current limiting (fixed), over temperature, over voltage
  • Package: PG/SSOP-14-5
  • Status: Obsolete
  • Supply and Demand: Balanced
  • Manufacturer Package Quantity: 2,500
  • MSL Level: 1 (Unlimited)
  • Voltage Supply (Vcc/Vdd): 3V to 5.5V
