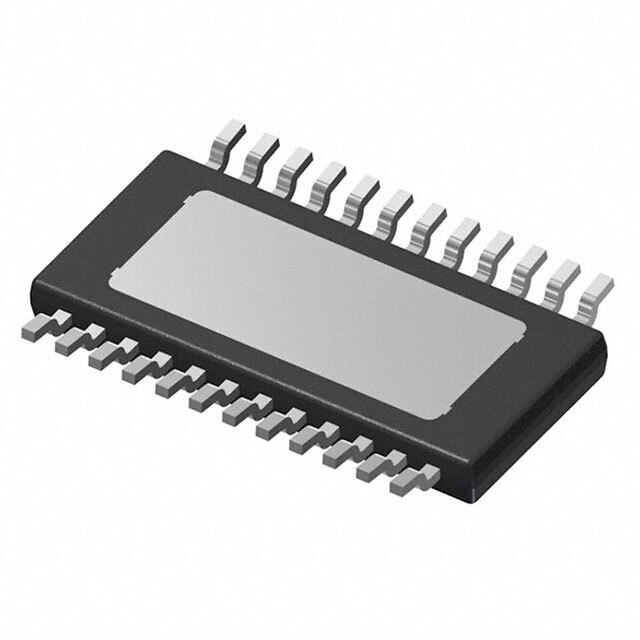

Same model may have multiple batches, images only for reference.
TLD60982ESXUMA2 Infineon Technologies
Same model may have multiple batches, images only for reference.

TLD60982ESXUMA2

Part No TLD60982ESXUMA2
Manufacturer Infineon Technologies
Catalog PMIC - LED Drivers
Description IC LED DRVR CTRLR PWM 1A 24TSDSO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr Infineon Technologies
Series -
Package Tape & Reel
Product Status Active
Type DC DC Controller
Topology Step-Up (Boost)
Internal Switch(s) No
Number of Outputs 2
Voltage - Supply (Min) 4.5V
Voltage - Supply (Max) 58V
Voltage - Output 70V
Current - Output / Channel 1A
Frequency 100kHz ~ 500kHz
Dimming PWM
Applications Automotive
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 24-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package PG-TSDSO-24
Base Product Number TLD60982
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1372218-TLD60982ESXUMA2
Ultra Librarian 3D Model Ultra Librarian TLD60982ESXUMA2 CAD Model

Description

The TLD60982ESXUMA2 is a power management integrated circuit (IC) specifically designed for LED drivers and manufactured by Infineon Technologies.

  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Application: LED Drivers
  • Type: DC DC Controller
  • Number of Outputs: 2
  • Frequency - Switching: 100kHz ~ 500kHz
  • Mounting Type: Surface Mount
  • Package / Case: 24-TSSOP (0.173", 4.40mm Width) Exposed Pad
  • Voltage - Output: 70V
  • Current - Output / Channel: 1A per channel
  • Control Features: PWM
  • Application: Automotive
  • REACH Status: REACH unaffected
