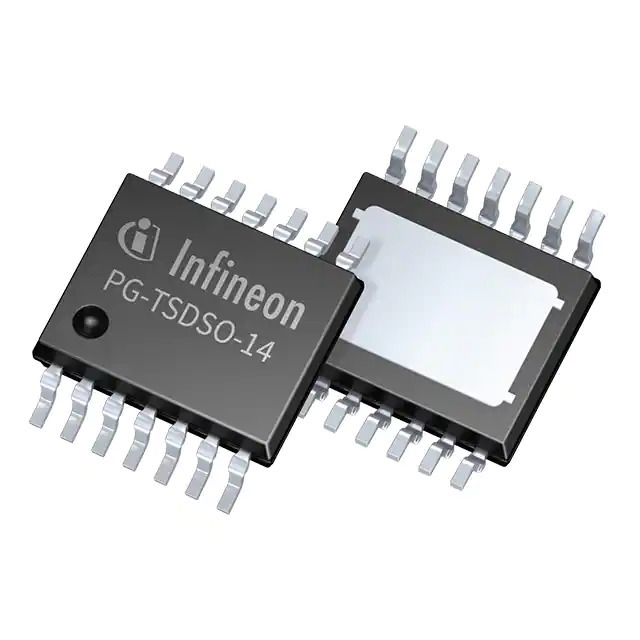

Same model may have multiple batches, images only for reference.
TLD60981EPXUMA2 Infineon Technologies
Same model may have multiple batches, images only for reference.

TLD60981EPXUMA2

Part No TLD60981EPXUMA2
Manufacturer Infineon Technologies
Catalog PMIC - LED Drivers
Description LITIX POWER BOOST CONTROLLER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr Infineon Technologies
Series Automotive, AEC-Q100, LITIX™
Package Tape & Reel
Product Status Active
Type DC DC Controller
Topology Flyback, SEPIC, Step-Down (Buck), Step-Up (Boost)
Internal Switch(s) No
Number of Outputs 1
Voltage - Supply (Min) 4.5V
Voltage - Supply (Max) 58V
Voltage - Output 0V ~ 70V
Current - Output / Channel 3mA
Frequency 100kHz ~ 500kHz
Dimming PWM
Applications Automotive, Lighting
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 14-TSSOP (0.154", 3.90mm Width) Exposed Pad
Supplier Device Package PG-TSDSO-14
Base Product Number TLD60981
MSL Level 2A (4 Weeks)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1368368-TLD60981EPXUMA2
Ultra Librarian 3D Model Ultra Librarian TLD60981EPXUMA2 CAD Model

Description

The TLD60981EPXUMA2 is a DC DC controller integrated circuit (IC) from Infineon Technologies.

  • Operating Temperature: -40°C to 150°C
  • Frequency Range: 100kHz to 500kHz
  • Package: 14-TSSOP with an exposed pad
  • Suitable For: Automotive and lighting applications
  • Voltage Supply Range: 4.5V to 58V
  • Voltage Output Range: 0V to 70V
  • Power Management: Flexible capabilities
  • Product Status: Active
  • REACH: Unaffected
  • ECCN: EAR99
