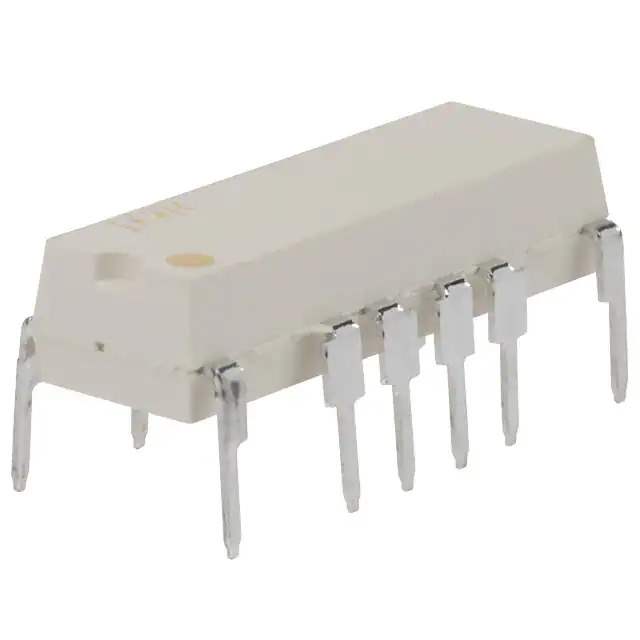

PVR1300N Real Image
Same model may have multiple batches, images only for reference.

PVR1300N

Part No PVR1300N
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY DPST-NO 360MA 0-100V / Solid State DPST-NO (2 Form A) x 2 16-DIP (0.300", 7.62mm), 10 Leads
Datasheet
PVR1300N Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVR, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Circuit DPST-NO (2 Form A) x 2
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 100 V
Load Current 360 mA
On-State Resistance (Max) 5 Ohms
Termination Style PC Pin
Package / Case 16-DIP (0.300", 7.62mm), 10 Leads
Supplier Device Package 16-DIP
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658207-PVR1300N
Ultra Librarian 3D Model Ultra Librarian PVR1300N CAD Model

Description

The PVR1300N is a solid-state relay with a DPST-NO circuit configuration.

  • Series: PVR series
  • Input Voltage: 1.2VDC
  • Output Type: AC and DC
  • On-State Resistance: 5 Ohms
  • Load Current: 360 mA
  • Voltage Load: 0V to 100V
  • Mounting: through-hole mounting
  • Package: 16-DIP package
  • Manufacturer: Infineon Technologies
  • Status: obsolete
