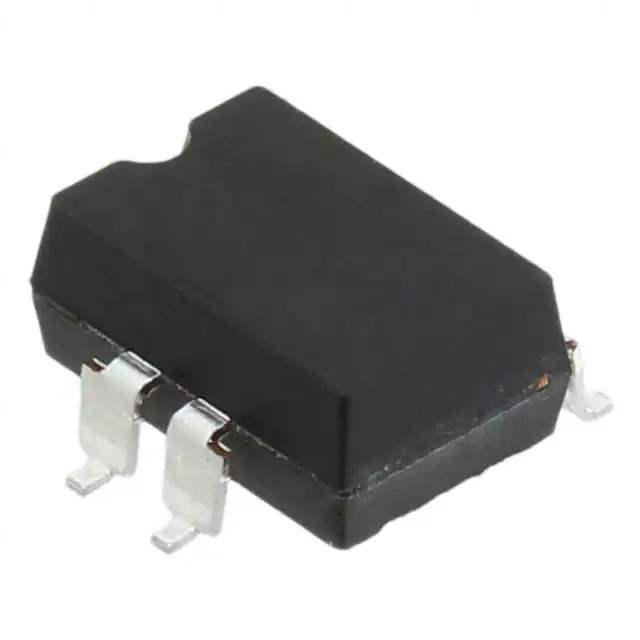

PVA3324NS Real Image
Same model may have multiple batches, images only for reference.

PVA3324NS

Part No PVA3324NS
Manufacturer Infineon Technologies
Catalog Solid State Relays
Description SSR RELAY SPST-NO 150MA 0-300V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Solid State Relays
Mfr Infineon Technologies
Series PVA, HEXFET®
Package Tube
Product Status Obsolete
Mounting Type Surface Mount
Circuit SPST-NO (1 Form A)
Output Type AC, DC
Voltage - Input 1.2VDC
Voltage - Load 0 V ~ 300 V
Load Current 150 mA
On-State Resistance (Max) 24 Ohms
Termination Style Gull Wing
Package / Case 8-SMD (0.300", 7.62mm), 4 Leads
Supplier Device Package 8-SMD
Standard Package 50 pcs
MSL Level 4 (72 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 658145-PVA3324NS
Ultra Librarian 3D Model Ultra Librarian PVA3324NS CAD Model

Description

The PVA3324NS is a solid-state relay from the PVA series by Infineon Technologies.

  • Relay Type: Single-pole, single-throw normally open (SPST-NO)
  • Maximum On-State Resistance: 24 Ohms
  • Load Current: 150 mA
  • Load Voltage Range: 0V to 300V
  • Input Voltage Required: 1.2VDC
  • Mounting Style: Surface mountable
  • Package: 8-SMD
  • Suitable For: Applications that require switching AC or DC loads, such as home automation systems, industrial control systems, and telecommunications equipment
