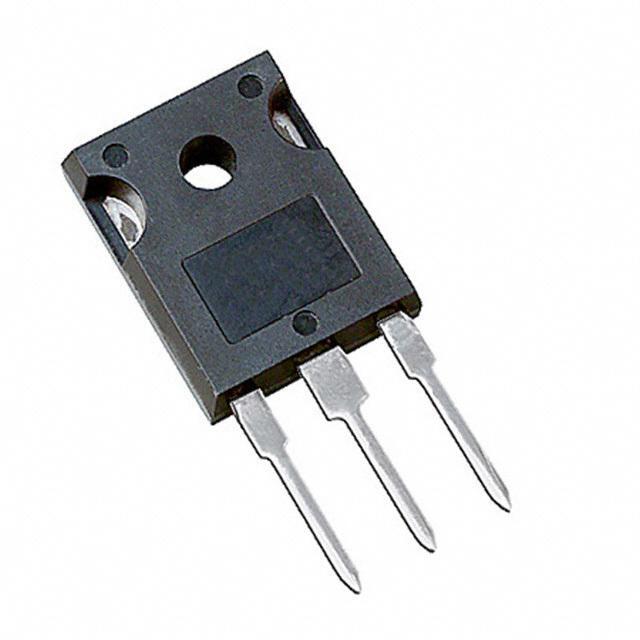

IRG4PC50UDPBF

Name: IRG4PC50UDPBF
Brand: Infineon Technologies
SKU: 161195
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	IRG4PC50UDPBF
Manufacturer	Infineon Technologies
Catalog	IGBTs - Single
Description	IGBT 600V 55A 200W TO247AC
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products
Family	Transistors - IGBTs - Single
Manufacturer	Infineon Technologies
Packaging	Bulk
Voltage - Collector Emitter Breakdown (Max)	600V
Current - Collector (Ic) (Max)	55A
Current - Collector Pulsed (Icm)	220A
Vce(on) (Max) @ Vge, Ic	2V @ 15V, 27A
Power - Max	200W
Switching Energy	990μJ (on), 590μJ (off)
Input Type	Standard
Gate Charge	180nC
Td (on/off) @ 25°C	46ns/140ns
Test Condition	480V, 27A, 5 Ohm, 15V
Reverse Recovery Time (trr)	50ns
Package	TO-247-3
Mounting Style	Through Hole
Manufacturer Device Package	TO-247AC
Win Source Part Number	016635-IRG4PC50UDPBF
Family Name	IRG4PC50UD
Introduction Date	April 30, 2004
ECCN	EAR99
Country of Origin	Mexico
Halogen Free	Compliant
Estimated EOL Date	2019
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian IRG4PC50UDPBF CAD Model

Description

The Infineon Technologies IRG4PC50UDPBF is a high power IGBT transistor from Infineon Technologies.

Maximum Power Rating: 200W
Voltage Breakdown: 600V
Continuous Current: 55A
Pulsed Current: 220A
Package: TO-247AC
Mounting Style: TO-247-3
Reverse Recovery Time: 50ns
Vce(on): 2V @ 27A
Switching Energy: 990μJ (on) and 590μJ (off)
Gate Charge: 180nC
