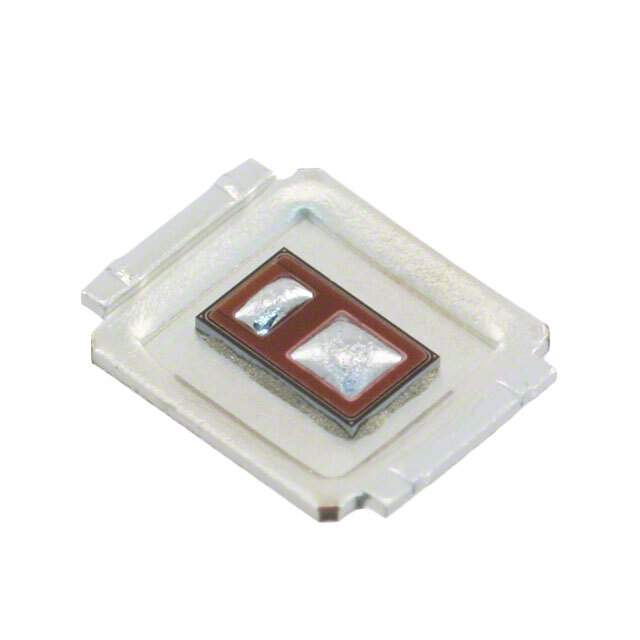

Same model may have multiple batches, images only for reference.

IRF7665S2TR1PBF

Name: IRF7665S2TR1PBF
Brand: Infineon Technologies
SKU: 604651
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	IRF7665S2TR1PBF
Manufacturer	Infineon Technologies
Catalog	FETs - Single
Description	Key parameters optimized for Class-D audio amplifier applications \| MOSFET N-CH 100V 4.1A DFET SB
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Discrete Semiconductor Products
Manufacturer	Infineon Technologies
Packaging	Reel
Status	Obsolete
Transistor Polarity	N-Channel
Technology	MOSFET
Vds - Drain-Source Breakdown Voltage	100V
Id - Continuous Drain Current	4.1A, 14.4A
Drive Voltage (Max Rds On, Min Rds On)	10V
Rds On (Maximum) at Id, Vgs	62mOhm at 8.9A, 10V
Gate Source Voltage(th) (Maximum) at Id	5V at 25μA
Gate Charge (Qg) (Maximum) at Vgs	13nC at 10V
Gate Source Voltage (Maximum)	±20V
Input Capacitance (Ciss) (Maximum) at Vds	515pF at 25V
Power Dissipation (Maximum)	2.4W, 30W
Temperature Range - Operating	-55°C ~ 175°C
Mounting Style	SMD
Supplier Device Package	DIRECTFET SB
Manufacturer Package	DirectFET Isometric SB
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1187339-IRF7665S2TR1PBF
Manufacturer Homepage	www.irf.com
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian IRF7665S2TR1PBF CAD Model

Alternative Products

Description

The Infineon Technologies IRF7665S2TR1PBF is a high-performance MOSFET that is designed for use in a range of electronic devices.

Drain-Source Breakdown Voltage: 100V
Continuous Drain Current: 4.1A and 14.4A
Gate-Source Voltage: 5V @ 25μA
Maximum Power Dissipation: 2.4W and 30W
