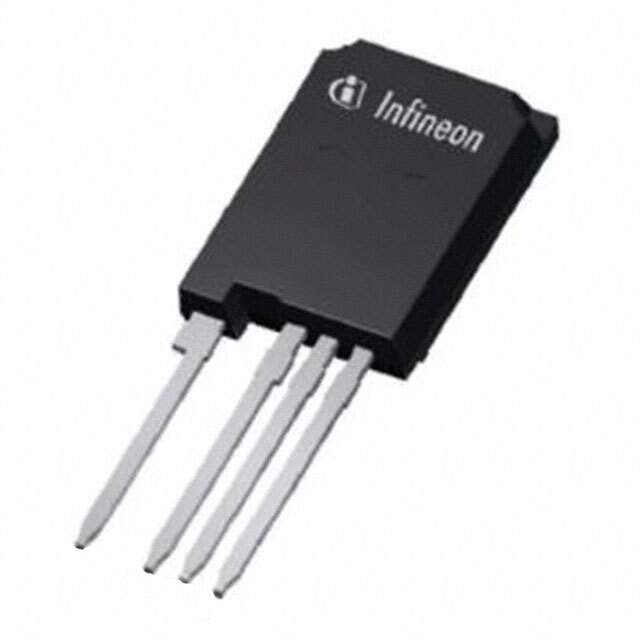

IKY40N120CS6XKSA1 Real Image
Same model may have multiple batches, images only for reference.

IKY40N120CS6XKSA1

Part No IKY40N120CS6XKSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Single
Description IGBT TRENCH/FS 1200V 80A TO247 / IGBT Trench Field Stop 1200 V 80 A 500 W Through Hole PG-TO247-4-2
Datasheet
IKY40N120CS6XKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr Infineon Technologies
Series TrenchStop™
Package Tube
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 1200 V
Current - Collector (Ic) (Max) 80 A
Current - Collector Pulsed (Icm) 160 A
Vce(on) (Max) @ Vge, Ic 2.15V @ 15V, 40A
Power - Max 500 W
Switching Energy 1.45mJ (on), 1.55mJ (off)
Input Type Standard
Gate Charge 285 nC
Td (on/off) @ 25°C 27ns/315ns
Test Condition 600V, 40A, 9Ohm, 15V
Reverse Recovery Time (trr) 255 ns
Temperature Range - Operating -40°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-4
Supplier Device Package PG-TO247-4-2
Base Product Number IKY40N120
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names 2156-IKY40N120CS6XKSA1,IFEINFIKY40N120CS6XKSA1,SP001666620
Standard Package 30
Win Source Part Number 1008190-IKY40N120CS6XKSA1
Ultra Librarian 3D Model Ultra Librarian IKY40N120CS6XKSA1 CAD Model

Description

The Infineon Technologies IKY40N120CS6XKSA1 is a TrenchStop™ IGBT transistor designed for use in discrete semiconductor products, specifically single IGBTs.

  • Package: TO-247-4
  • Maximum Power: 500W
  • Voltage Breakdown: 1200V
  • Maximum Collector Current: 80A
  • IGBT Type: Trench Field Stop
  • Switching Energy (on): 1.45mJ
  • Switching Energy (off): 1.55mJ
  • Gate Charge: 285 nC
  • Td (on/off) @ 25°C: 27ns/315ns
  • Operating Temperature Range: -40°C ~ 175°C (TJ)
