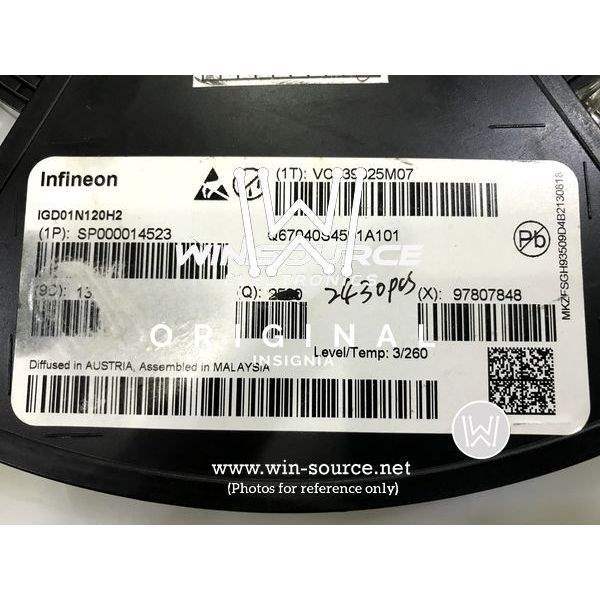

IGD01N120H2 Infineon Technologies IGD01N120H2 Real Image IGD01N120H2 label picture
Same model may have multiple batches, images only for reference.
IGD01N120H2 Infineon Technologies IGD01N120H2 Real Image IGD01N120H2 label picture
IGD01N120H2 Infineon Technologies IGD01N120H2 Real Image IGD01N120H2 label picture
Same model may have multiple batches, images only for reference.

IGD01N120H2

Part No IGD01N120H2
Manufacturer Infineon Technologies
Catalog IGBTs - Single
Description Trans IGBT Chip N-CH 1200V 3.2A 28000mW 3-Pin(2+Tab) DPAK T/R / HighSpeed 2-Technology
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Infineon Technologies
Win Source Part Number 1185264-IGD01N120H2
Manufacturer Homepage www.infineon.com
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name IGD01N120H2
Introduction Date June 12, 2003
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian IGD01N120H2 CAD Model

Description

The Infineon Technologies IGD01N120H2 is an N-channel IGBT transistor designed for use in power management and industrial applications.

  • Voltage Collector-Emitter (Max): 1200V
  • Current Collector (Continuous): 1A
  • Vce(on): 2.2V @ 15V, 25A
  • Gate Charge: 25nC
  • Package / Case: TO-252-3
  • Operating Temperature: -55°C to 150°C
  • Compliance: EAR99
  • Estimated EOL Date: 2024
