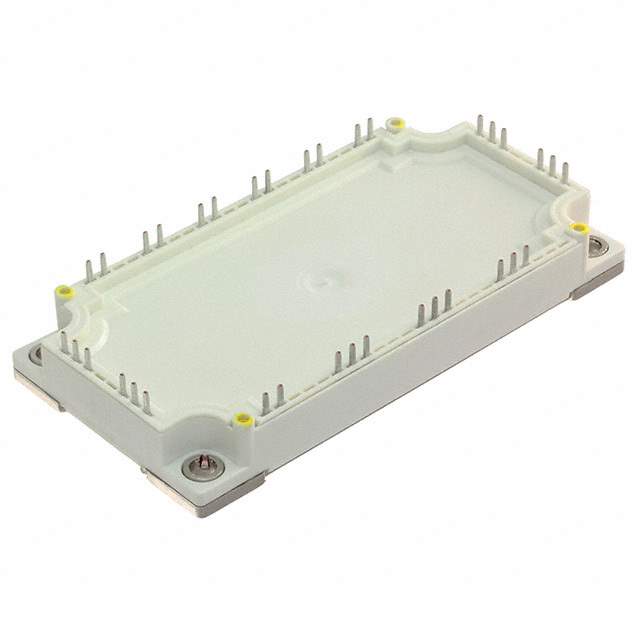

FS200R12KT4RB11BOSA1 Real Image1 FS200R12KT4RB11BOSA1 Real Image2
Same model may have multiple batches, images only for reference.
FS200R12KT4RB11BOSA1 Real Image1 FS200R12KT4RB11BOSA1 Real Image2
FS200R12KT4RB11BOSA1 Real Image1 FS200R12KT4RB11BOSA1 Real Image2
Same model may have multiple batches, images only for reference.

FS200R12KT4RB11BOSA1

Part No FS200R12KT4RB11BOSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Modules
Description IGBT MOD 1200V 280A 1000W
Datasheet
FS200R12KT4RB11BOSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 17 Weeks
Features IGBT Module - Three Phase Inverter 1200 V 280 A 1000 W Chassis Mount Module
Manufacturer Infineon Technologies
Package Bulk
Operating Temperature Range -40°C ~ 150°C
Mounting Chassis Mount
Package Module
Case / Package Module
Family Name FS200R12
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number FS200R12KT4R_B11, FS200R12KT4R_B11-ND, SP000687668
Quantity per package 10
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 872270-FS200R12KT4RB11BOSA1
Ultra Librarian 3D Model Ultra Librarian FS200R12KT4RB11BOSA1 CAD Model

Description

The Infineon Technologies FS200R12KT4RB11BOSA1 IGBT Module is a three-phase inverter module with a voltage rating of 1200V and a current rating of 280A.

  • Voltage Rating: 1200V
  • Current Rating: 280A
  • Mounting Type: Chassis Mount
  • Power Handling: Up to 1000W
  • Category: Discrete Semiconductor Products
  • Popularity: Medium
  • Supply and Demand: Limited
  • Quantity per Package: 10
