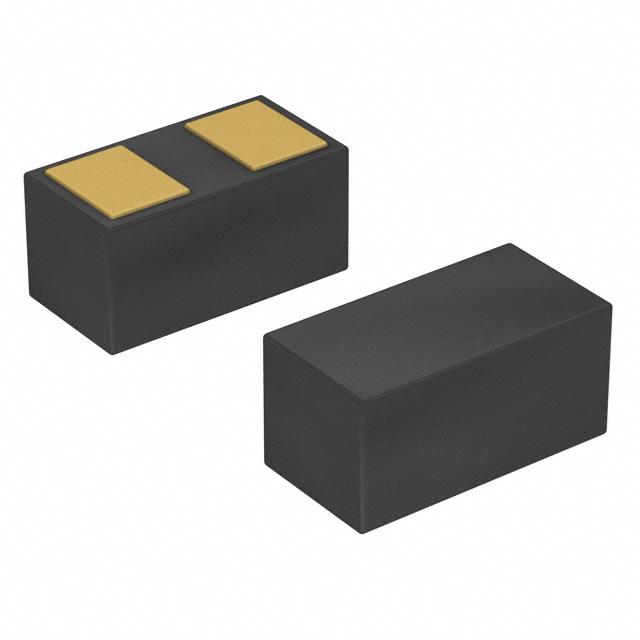

Same model may have multiple batches, images only for reference.
ESD5V3S1B02LSE6327XTSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

ESD5V3S1B02LSE6327XTSA1

Part No ESD5V3S1B02LSE6327XTSA1
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description TVS DIODE 5.3VWM 26VC TSSLP2-1
Datasheet
ESD5V3S1B02LSE6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Bidirectional Channels 1
STAND-OFF Voltage (Vwm) 5.3V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 26V
Peak Pulse Current(Ippm) 5A (8/20μs)
Applications General Purpose
Capacitance @ Frequency 17pF @ 1MHz
Temperature Range - Operating -40°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package PG-TSSLP-2
Win Source Part Number 096567-ESD5V3S1B02LSE6327XTSA1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ESD5V3S1B02LSE6327XTSA1 CAD Model

Description

Description

The ESD5V3S1B02LSE6327XTSA1 offers advanced protection for electronic components against unexpected ESD events. It is characterized by its high reliability and efficiency, catering to various applications demanding stringent protection.

Features and Benefits

  • Efficient bi-directional protection
  • Reliable and robust design
  • Low leakage current to save power
  • Compatible with modern circuit designs

Applications

  • High-speed communication interfaces
  • Automotive systems
  • Notebook and desktop PCs
  • IoT devices
