The ESD5V0H1U-02LS is a Transient Voltage Suppression (TVS) diode designed to protect sensitive electronic components from electrostatic discharge (ESD). This device is manufactured by Infineon Technologies and offers robust ESD protection with minimal impact on signal integrity.

Applications

• USB data lines
• HDMI interfaces
• Ethernet ports
• Antenna circuits in wireless devices
• General I/O protection in electronic devices

Features

• Low clamping voltage
• Ultra-low capacitance (typically 0.3 pF)
• Bidirectional ESD protection

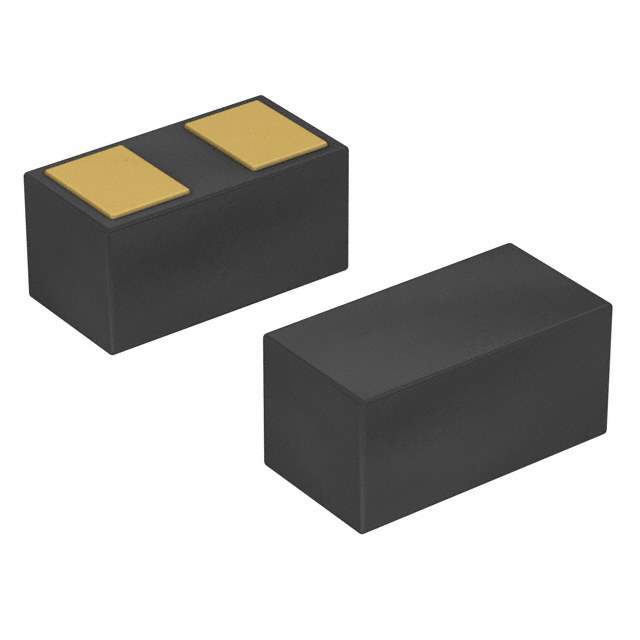

• Small package size (TSSLP-2-1)
• ESD protection up to ±15 kV contact discharge according to IEC 61000-4-2
• RoHS compliant

Benefits

• Provides excellent ESD protection to safeguard sensitive components from damage.
• Minimizes signal distortion and preserves signal integrity in high-speed data applications due to its ultra-low capacitance.
• Simplified circuit design with bidirectional protection.
• Compact design suitable for space-constrained applications.
• Meets industry standards for ESD protection.

Additional Details

The ultra-low capacitance of the ESD5V0H1U-02LS makes it particularly well-suited for protecting high-speed data lines such as USB 3.0 and HDMI. The low clamping voltage ensures that the protected components are not exposed to damaging voltage levels during an ESD event. The bidirectional protection simplifies the design by allowing the same device to protect against both positive and negative ESD strikes. The TSSLP-2-1 package is extremely small, making it ideal for use in portable devices and other applications where board space is at a premium. The device is compliant with the IEC 61000-4-2 standard, which specifies the requirements for ESD immunity testing. Infineon Technologies is a leading provider of semiconductor solutions, known for their high-quality and reliable protection devices.
