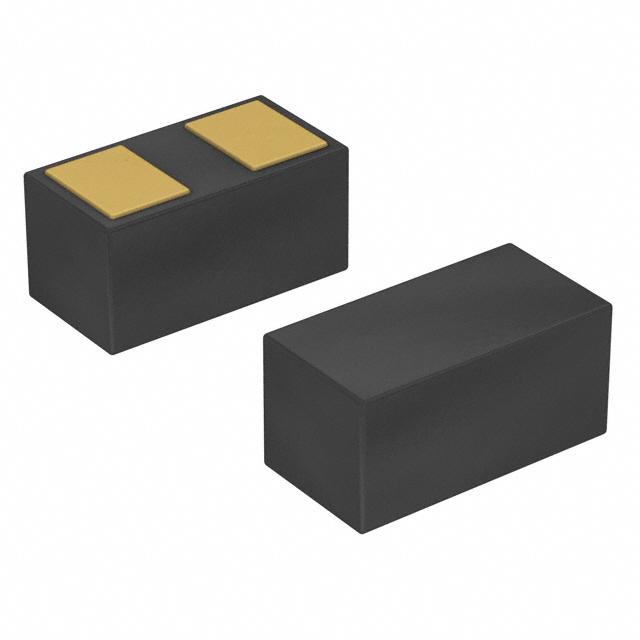

Same model may have multiple batches, images only for reference.
ESD114U102ELSE6327XTSA1 Infineon Technologies
Same model may have multiple batches, images only for reference.

ESD114U102ELSE6327XTSA1

Part No ESD114U102ELSE6327XTSA1
Manufacturer Infineon Technologies
Catalog TVS - Diodes
Description TVS DIODE 5.3VWM 28VC TSSLP2-1
Datasheet
ESD114U102ELSE6327XTSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5.3V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 28V (Typ)
Peak Pulse Current(Ippm) 3A (8/20μs)
Applications HDMI
Capacitance @ Frequency 0.4pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package TSSLP-2-3
Win Source Part Number 1037045-ESD114U102ELSE6327XTSA1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ESD114U102ELSE6327XTSA1 CAD Model

Description

The supply and demand status is sufficient.

  • Packaging: Reel - TR
  • Mounting: SMD (SMT)
  • Type: Zener
  • Applications: HDMI
  • Unidirectional Channels: 1
  • Capacitance @ Frequency: 0.4pF @ 1MHz
  • Temperature Range - Operating: -55°C to 125°C (TJ)
  • Case / Package: TSSLP-2-3
  • STAND-OFF Voltage (Vwm): 5.3V (Max)
  • Minimum Breakdown Voltage: 6V
  • Max Clamping Voltage: 28V (Typ)
  • Peak Pulse Current(Ippm): 3A (8/20μs)
