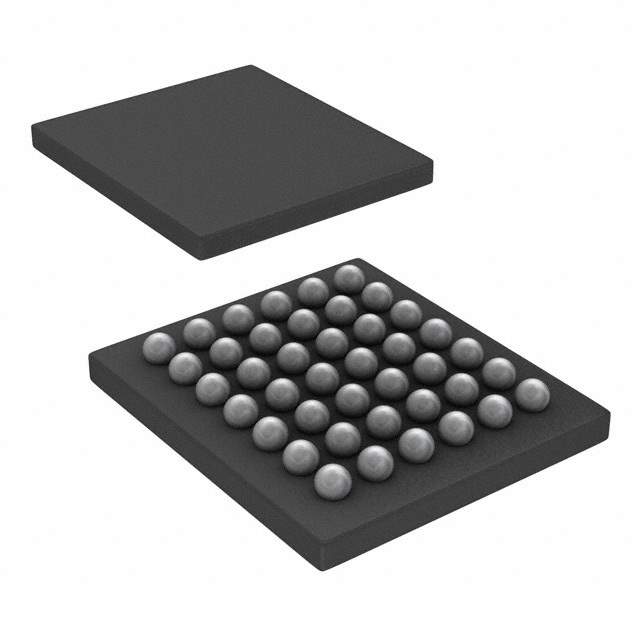

CYW89071A1CUBXGT Real Image
Same model may have multiple batches, images only for reference.

CYW89071A1CUBXGT

Part No CYW89071A1CUBXGT
Manufacturer Infineon Technologies
Catalog RF Transceiver ICs
Description IC RF TXRX+MCU BLUETOOTH 42UFBGA / IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 42-UFBGA, WLBGA
Datasheet
CYW89071A1CUBXGT Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver ICs
Mfr Infineon Technologies
Package Tape & Reel
Type TxRx + MCU
RF Family/Standard Bluetooth
Protocol Bluetooth v4.1
Modulation 4DQPSK, 8DPSK, GFSK
Frequency 2.4GHz
Data Rate (Max) 3Mbps
Power - Output 10dBm
Sensitivity -91dBm
Memory Size 384kB ROM, 112kB RAM
Serial Interfaces I2S, SPI, UART
GPIO 8
Voltage - Supply 3.3V
Current - Receiving 31mA ~ 32mA
Current - Transmitting 59mA ~ 65mA
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 42-UFBGA, WLBGA
Supplier Device Package 42-WLBGA (3.02x2.51)
Base Product Number CYW89071
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8542.31.0001
Win Source Part Number 1347990-CYW89071A1CUBXGT
Ultra Librarian 3D Model Ultra Librarian CYW89071A1CUBXGT CAD Model

Description

The CYW89071A1CUBXGT is a 2.4 GHz Bluetooth v4.1 RF Transceiver IC that comes with a TxRx and an MCU.

  • Memory Size: 384kB ROM and 112kB RAM
  • Power Output: 10dBm
  • Sensitivity: -91dBm
  • Data Rate: 3Mbps (max)
  • Current Receiving: 31mA to 32mA
  • Current Transmitting: 59mA to 65mA
  • Voltage Supply: 3.3V
  • Package Type: 42-UFBGA, WLBGA
  • Device Package: 42-WLBGA (3.02x2.51)
  • Operating Temperature Range: -40°C to 85°C
  • Modulation: 4DQPSK, 8DPSK, GFSK
  • Clock Frequency: 167 MHz
  • Serial Interfaces: I2S, SPI, and UART
  • GPIO: 8
