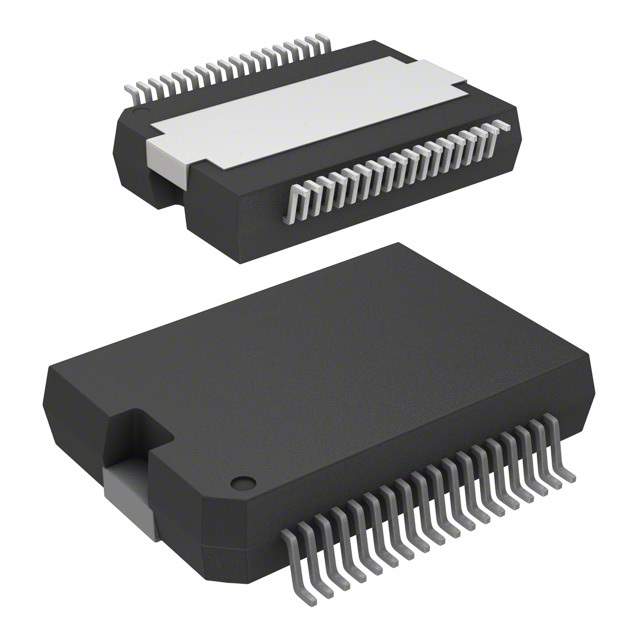

BTS5562E Real Image
Same model may have multiple batches, images only for reference.

BTS5562E

Part No BTS5562E
Manufacturer Infineon Technologies
Catalog PMIC - LED Drivers
Description IC LED DRVR RGLTR DIM 24A 36DSO
Datasheet
BTS5562E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Reel - TR
Status Obsolete(EOL)
Type DC DC Regulator
Topology Switched Capacitor (Charge Pump)
Internal Switch(s) Yes
Number of Outputs 5
Operating Input Voltage(Min) 5.5V
Maximum Supply Voltage 28V
Channel Output Current 24A
Dimming SPI
Applications Automotive
Temperature Range - Operating -40°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package PG-DSO-36
Win Source Part Number 201560-BTS5562E
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian BTS5562E CAD Model

Description

Overview

The BTS5562E smart high-side switch is engineered for high-efficiency load control and protection. Especially adaptable to demanding environments, it offers substantial protection features alongside versatile compatibility.

Features and Benefits

  • Overcurrent protection for enhanced safety
  • Highly integrated to minimize system complexity
  • Robust thermal management features
  • Diagnostic capabilities for improved fault detection

Applications

  • Power distribution in automotive systems
  • Smart grid applications
  • HVAC system management
  • Control panels in industrial settings
