Same model may have multiple batches, images only for reference.

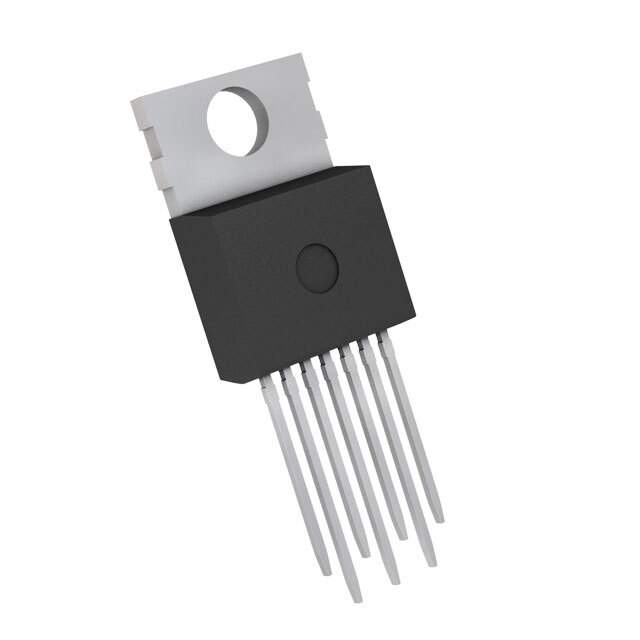

BTS50090-1TMB Real Image
Same model may have multiple batches, images only for reference.

BTS50090-1TMB

Part No BTS50090-1TMB
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description Smart High-Side Power Switch PROFET One Channel
Datasheet
BTS50090-1TMB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Infineon Technologies
Series PROFET
Packaging Tube
Part Status Obsolete(EOL)
Switch Type General
Number of Outputs 1
Output Configuration High Side
Output Type N-Channel
Interface On/Off
Voltage - Load 5.5 V ~ 38 V
Current - Output (Maximum) 9A
Rds On (Typ) 8 mOhm
Features Auto Restart
Fault Protection Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage
Operating Temperature Range -40°C ~ 150°C (TJ)
Package TO-220-7
Manufacturer Package PG-TO220-7
Win Source Part Number 1155567-BTS50090-1TMB
Manufacturer Homepage www.infineon.com
Popularity Medium
Supply and Demand Status Balance
Family Name BTS50090-1TMB
Introduction Date February 01, 2008
ECCN EAR99
Country of Origin Malaysia
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian BTS50090-1TMB CAD Model

Description

Infineon Technologies BTS50090-1TMB is a high side output configuration N-channel general switch type transistor.

  • Voltage Load: 5.5V ~ 38V
  • Rds On (Typical): 8mOhm
  • Package: TO-220-7
  • Features: Auto Restart
  • Operating Temperature: -40°C ~ 150°C (TJ)
  • Maximum Output Current: 9A
