Same model may have multiple batches, images only for reference.

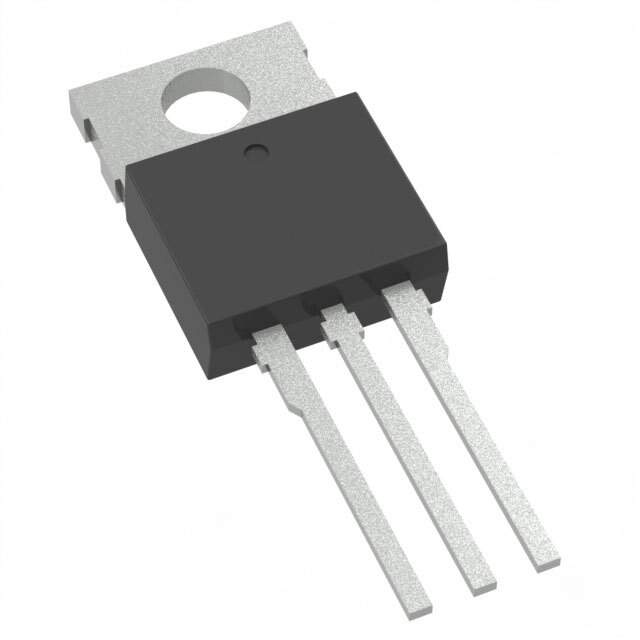

BTS117BKSA1 Real Image
Same model may have multiple batches, images only for reference.

BTS117BKSA1

Part No BTS117BKSA1
Manufacturer Infineon Technologies
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC LOW SIDE SW 3.5A TO-220-3-SMT
Datasheet
BTS117BKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Infineon Technologies
Packaging Tube/Rail
Status Active
Switch Type General Purpose
Number of Outputs 1
Output Type N-Channel
Voltage - Load 60V (Max)
Supply Voltage - Operating Not Required
Current - Output (Max) 3.5A
Rds On (Typ) 80 mOhm
Input Type Non-Inverting
Fault Protection Current Limiting (Fixed), Over Temperature, Over Voltage
Temperature Range - Operating -40°C to 150°C (TJ)
Case / Package PG-TO220-3-1
Win Source Part Number 1024850-BTS117BKSA1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BTS117BKSA1 CAD Model

Description

The Infineon Technologies BTS117BKSA1 is a general-purpose N-Channel switch with a maximum current output of 3.5A and voltage load of 60V (Max).

  • Typical Rds On: 80 mOhm
  • Input Type: Non-inverting
  • Fault Protection: Current limiting (fixed), over temperature, over voltage
  • Supply Voltage - Operating: Not Required
  • Packaging: Tube/rail
  • Case/Package: PG-TO220-3-1
