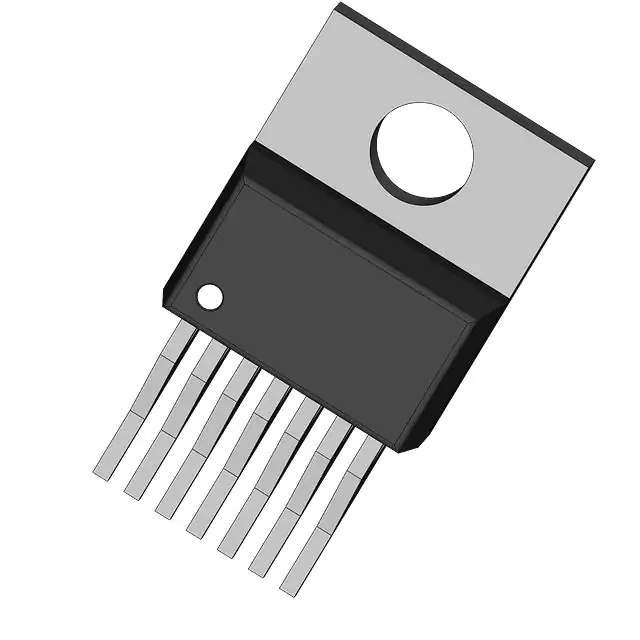

BTN7970S Real Image
Same model may have multiple batches, images only for reference.

BTN7970S

Part No BTN7970S
Manufacturer Infineon Technologies
Catalog PMIC - Motor Drivers, Controllers
Description HALF-BRIDGE PERIPHERAL DRIVER
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Motor Drivers, Controllers
Mfr Infineon Technologies
Series NovalithIC™
Package Bulk
Product Status Obsolete
Motor Type - Stepper Unipolar
Function Driver - Fully Integrated, Control and Power Stage
Output Configuration Half Bridge
Technology DMOS
Applications Automotive
Current - Output 90A
Voltage - Supply 8V ~ 18V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Mounting Type Through Hole
Package / Case TO-220-7 Formed Leads
Supplier Device Package P-TO220-7-11
Base Product Number BTN7970
Standard Package 70 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 913681-BTN7970S
Ultra Librarian 3D Model Ultra Librarian BTN7970S CAD Model

Description

The BTN7970S is a motor driver controller designed for automotive applications.

  • Manufacturer: Infineon Technologies
  • Series: NovalithIC™
  • Application: automotive
  • Functionality: control and power stage
  • Package: compact TO-220-7 package with formed leads
  • Voltage Supply Range: 8V to 18V
  • Current Capability: up to 90A
  • Output Configuration: half bridge
  • Suitable for: driving unipolar stepper motors
  • Technology: DMOS
  • Temperature Range: -40°C to 150°C
  • Status: obsolete but still available in limited quantities
