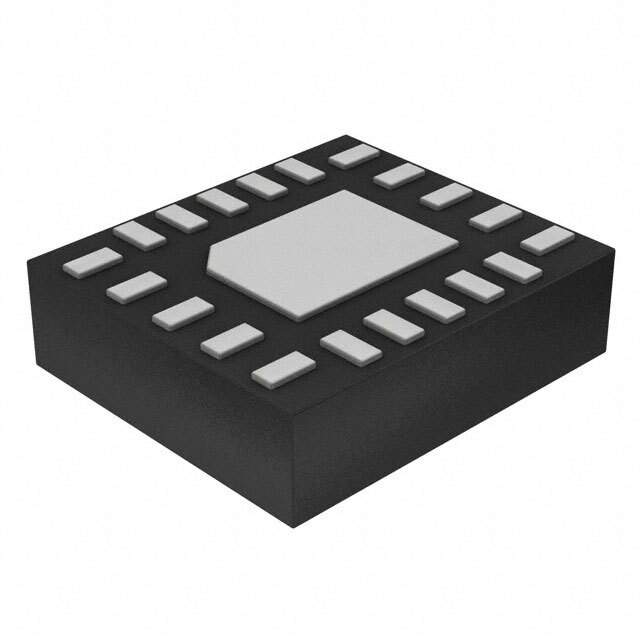

The Infineon BGSF18DM20E6727 is an RF switch designed for antenna tuning applications in mobile devices. This switch helps to optimize antenna performance across different frequency bands and operating conditions. Its high linearity and low insertion loss make it ideal for maintaining signal quality in demanding wireless environments.

Applications:

• Mobile Phones (4G/5G)
• Tablets
• Wireless Routers
• Antenna Tuners
• IoT Devices
• Wearable Electronics

Features:

• High Linearity
• Low Insertion Loss
• High Isolation
• Small Form Factor
• Single Control Voltage
• Integrated Matching Network

Benefits:

• Improved Antenna Efficiency
• Enhanced Signal Strength
• Reduced Power Consumption
• Smaller Device Size
• Simplified Design
• Increased System Performance

Additional Details:

The BGSF18DM20E6727 is designed with a focus on minimizing signal distortion and maximizing efficiency in antenna tuning circuits. It provides excellent linearity, ensuring that the signal is not corrupted during switching operations. The low insertion loss helps to maintain the signal strength, while the high isolation prevents unwanted signals from interfering with the desired signal path. The small form factor of the switch allows for easy integration into compact mobile devices. The single control voltage simplifies the control circuitry, reducing the complexity of the overall system. The integrated matching network further simplifies the design process by providing impedance matching, which is crucial for optimizing antenna performance. The Infineon BGSF18DM20E6727 is a critical component in modern mobile devices, enabling them to achieve optimal wireless performance in a variety of operating conditions.
