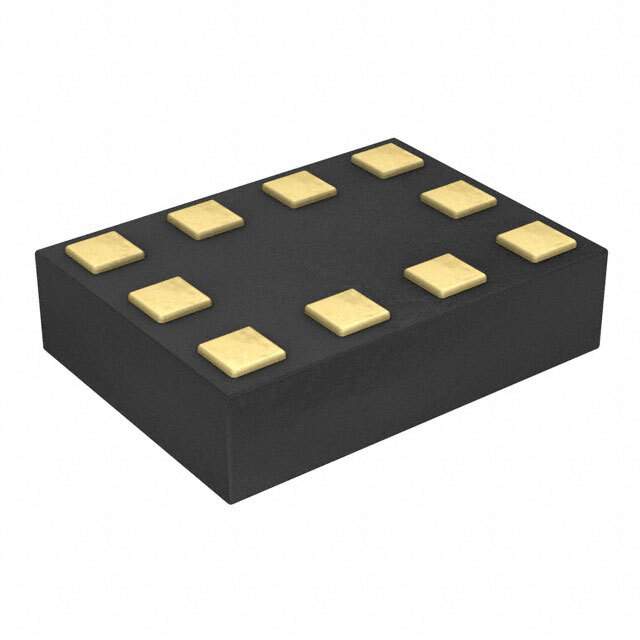

The Infineon BGSA13GN10E6327 is a versatile Single Pole Three Throw (SP3T) RF switch. It's designed for applications requiring precise signal routing, low insertion loss, and high isolation. Its primary use is in selecting between different RF paths, such as antenna selection in multi-band wireless devices or switching between different communication standards.

Applications:

• Mobile Phones (GSM, WCDMA, LTE)
• GPS Navigation Systems
• Bluetooth Devices
• Wi-Fi Enabled Devices
• Automotive Communication Systems
• IoT (Internet of Things) Devices

Features:

• Low insertion loss
• High isolation
• Small form factor
• Single positive supply voltage
• High linearity
• Integrated control logic

Benefits:

• Improved signal integrity and performance in wireless systems
• Reduced power consumption due to low losses
• Compact design for space-constrained applications
• Simplified integration with microcontrollers
• Increased reliability and durability
• Enhanced flexibility in RF design

Additional Details:

The BGSA13GN10E6327 operates over a wide frequency range, accommodating various wireless communication standards. It features a high degree of linearity, ensuring minimal signal distortion even at high power levels. The small package size allows for easy integration into compact devices, while the integrated control logic simplifies the interface to the control system. The switch is designed to minimize signal loss in the ON state and maximize isolation in the OFF state, which is critical for maintaining signal quality in complex RF systems. It also incorporates ESD protection to prevent damage from electrostatic discharge, ensuring reliable operation over its lifespan. The Infineon BGSA13GN10E6327 is manufactured using advanced semiconductor technology to achieve high performance and reliability. It's a common choice for RF front-end modules in mobile devices and other wireless communication equipment.
