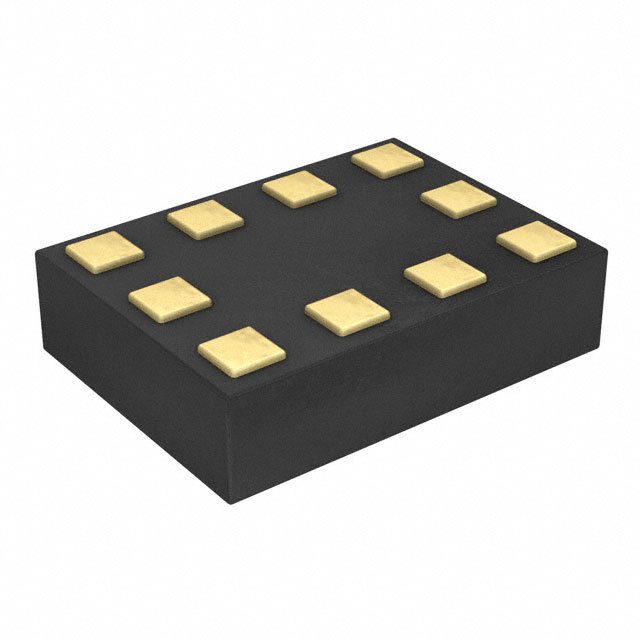

Same model may have multiple batches, images only for reference.

BGS14PN10E6327XTSA1

Name: BGS14PN10E6327XTSA1
Brand: Infineon Technologies
SKU: 1161734
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	BGS14PN10E6327XTSA1
Manufacturer	Infineon Technologies
Catalog	RF Switches
Description	IC RF SWITCH SP4T 6GHZ TSNP10-1 / RF Switch IC SP4T 6 GHz 50Ohm PG-TSNP-10-1
Datasheet	BGS14PN10E6327XTSA1 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	RF/IF and RFID>RF Switches
Mfr	Infineon Technologies
Package	Tape & Reel
Circuit	SP4T
Frequency Range	500MHz ~ 6GHz
Isolation	18dB
Insertion Loss	1.2dB
Test Frequency	6GHz
IIP3	73dBm
Impedance	50Ohm
Voltage - Supply	1.8V ~ 3.6V
Temperature Range - Operating	-40°C ~ 85°C
Package / Case	10-XFQFN
Supplier Device Package	PG-TSNP-10-1
Base Product Number	BGS14PN10
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Other Names	BGS14PN10E6327XTSA1DKR,BGS14PN10E6327XTSA1CT,BGS14PN10E6327XTSA1TR,SP001197204,BGS14PN10E6327XTSA1-ND,2156-BGS14PN10E6327XTSA1-448
Standard Package	7,500
Win Source Part Number	1161734-BGS14PN10E6327XTSA1
Ultra Librarian 3D Model	Ultra Librarian BGS14PN10E6327XTSA1 CAD Model

Alternative Products

Description

The Infineon Technologies BGS14PN10E6327XTSA1 is an RF switch with a Win Source Part Number of 1161734-BGS14PN10E6327XTSA1.

Win Source Part Number: 1161734-BGS14PN10E6327XTSA1
Frequency Range: 500MHz to 6GHz
Impedance: 50Ohm
Insertion Loss: 1.2dB
Isolation: 18dB
Circuit: SP4T
IIP3: 73dBm
Voltage Supply: 1.8V to 3.6V
Operating Temperature: -40 degrees Celsius to 85 degrees Celsius
Package: Tape and Reel
Standard Package: 7,500
