Same model may have multiple batches, images only for reference.

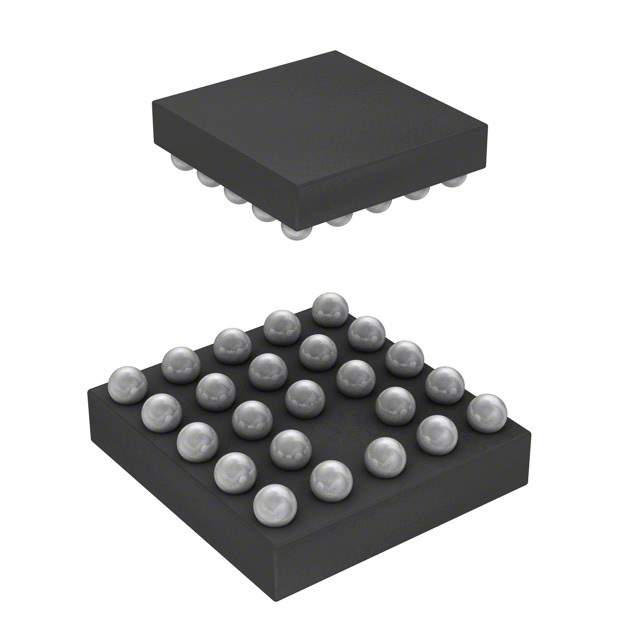

BGF 109L E6328 Real Image
Same model may have multiple batches, images only for reference.

BGF 109L E6328

Part No BGF 109L E6328
Manufacturer Infineon Technologies
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER LC 28PF (TOTAL) ESD SMD / LC EMI Filter 5th Order Low Pass 10 Channel C = 28pF (Total) 25 mA 24-UFBGA
Datasheet
BGF 109L E6328 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>EMI/RFI Filters (LC, RC Networks)
Mfr Infineon Technologies
Package Tape & Reel (TR)
Product Status Obsolete
Type Low Pass
Filter Order 5th
Technology LC
Number of Channels 10
Attenuation Value 45dB @ 800MHz ~ 2.2GHz
Resistance - Channel (Ohms) 90
Current 25 mA
Values C = 28pF (Total)
ESD Protection Yes
Temperature Range - Operating -40°C ~ 85°C
Applications Data Lines for Mobile Devices
Voltage - Rated 5V
Mounting SMD (SMT)
Package / Case 24-UFBGA
Dimension 0.083" L x 0.083" W (2.10mm x 2.10mm)
Height 0.026" (0.65mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Names SP000454322,BGF 109L E6328-ND,BGF109LE6328
Standard Package 4,500
Win Source Part Number 973199-BGF 109L E6328
Ultra Librarian 3D Model Ultra Librarian BGF 109L E6328 CAD Model

Description

The Infineon Technologies BGF 109L E6328 is a low pass EMI/RFI filter manufactured by Infineon Technologies.

  • Case/Package: 24-UFBGA
  • Channels: 10
  • Resistance: 90 ohms per channel
  • Attenuation: 45dB @ 800MHz ~ 2.2GHz
  • Current: 25 mA
  • Application: Data lines for mobile devices
  • Voltage Rating: 5V
  • Compliance: RoHS
  • Packaging: Tape and reel
