Same model may have multiple batches, images only for reference.

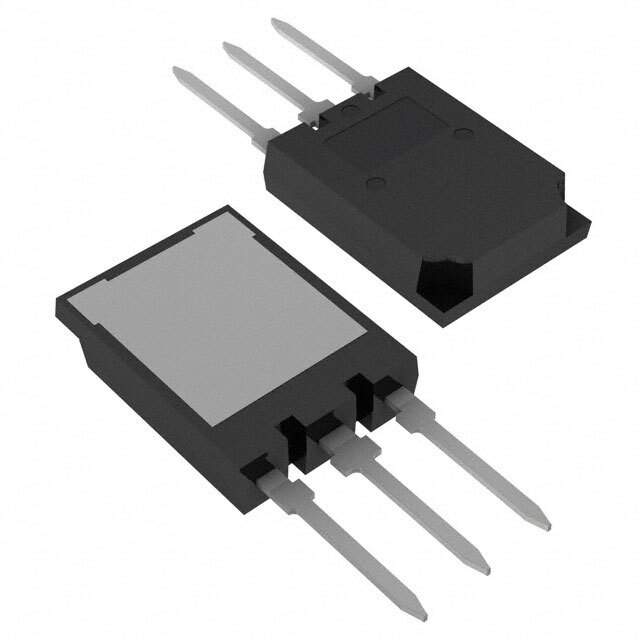

AIKQ100N60CTXKSA1 Real Image
Same model may have multiple batches, images only for reference.

AIKQ100N60CTXKSA1

Part No AIKQ100N60CTXKSA1
Manufacturer Infineon Technologies
Catalog IGBTs - Single
Description IC DISCRETE 600V TO247-3 / IGBT Trench Field Stop 600 V 160 A 714 W Through Hole PG-TO247-3-46
Datasheet
AIKQ100N60CTXKSA1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Transistors - IGBTs - Single
Mfr Infineon Technologies
Series Automotive, AEC-Q101, TrenchStop™
Package Tube
IGBT Type Trench Field Stop
Voltage - Collector Emitter Breakdown (Max) 600 V
Current - Collector (Ic) (Max) 160 A
Current - Collector Pulsed (Icm) 400 A
Vce(on) (Max) @ Vge, Ic 2V @ 15V, 100A
Power - Max 714 W
Switching Energy 3.1mJ (on), 2.5mJ (off)
Input Type Standard
Gate Charge 610 nC
Td (on/off) @ 25°C 30ns/290ns
Test Condition 400V, 100A, 3.6Ohm, 15V
Temperature Range - Operating -40°C ~ 175°C (TJ)
Mounting Type Through Hole
Package / Case TO-247-3
Supplier Device Package PG-TO247-3-46
Base Product Number AIKQ100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Names SP001346798
Standard Package 30
Win Source Part Number 1044265-AIKQ100N60CTXKSA1
Ultra Librarian 3D Model Ultra Librarian AIKQ100N60CTXKSA1 CAD Model

Description

This electronic component is a TrenchStop™ IGBT transistor categorized under the Discrete Semiconductor Products>Transistors - IGBTs - Single category.

  • Category: Discrete Semiconductor Products > Transistors - IGBTs - Single
  • Product Name: 1044265-AIKQ100N60CTXKSA1
  • Series: Automotive, AEC-Q101, TrenchStop™
