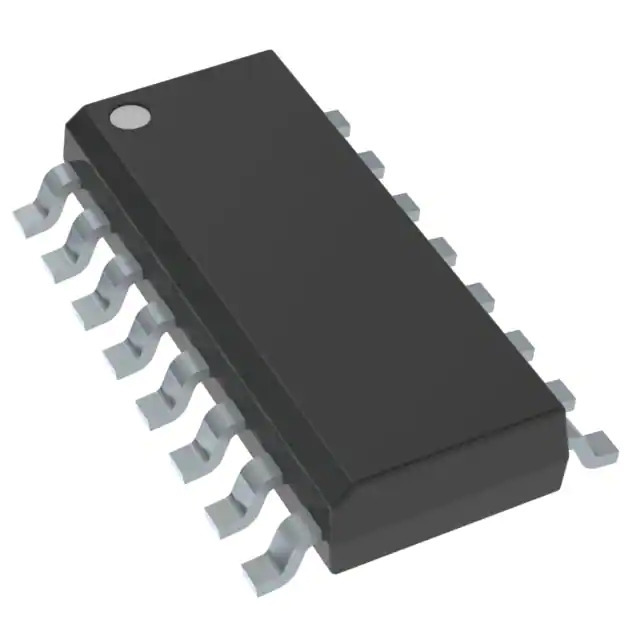

2EDF7275FXUMA2

Name: 2EDF7275FXUMA2
Brand: Infineon Technologies
SKU: 1355355
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	2EDF7275FXUMA2
Manufacturer	Infineon Technologies
Catalog	PMIC - Gate Drivers
Description	IC GATE DRVR HALF-BRIDG DSO16 / Half-Bridge Gate Driver IC Non-Inverting PG-DSO-16-11
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - Gate Drivers
Mfr	Infineon Technologies
Series	EiceDriver™
Package	Tape & Reel
Product Status	Active
Driven Configuration	Half-Bridge
Channel Type	Independent
Number of Drivers	2
Gate Type	N-Channel, P-Channel MOSFET
Voltage - Supply	20V
Logic Voltage - VIL, VIH	-, 1.65V
Current - Peak Output (Source, Sink)	4A, 8A
Input Type	Non-Inverting
High Side Voltage - Max (Bootstrap)	1500 V
Rise / Fall Time (Typ)	6.5ns, 4.5ns
Temperature Range - Operating	-40°C ~ 125°C (TA)
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154", 3.90mm Width)
Supplier Device Package	PG-DSO-16-11
Base Product Number	2EDF7275
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	1355355-2EDF7275FXUMA2
Ultra Librarian 3D Model	Ultra Librarian 2EDF7275FXUMA2 CAD Model

Description

The 1355355-2EDF7275FXUMA2 is an active integrated circuit (IC) in the category of Power Management - Gate Drivers. Manufactured by Infineon Technologies, this IC is part of the EiceDriver™ series.

Function: Gate Driver
Configuration: Half-Bridge
MOSFET Type: N-Channel, P-Channel
Operating Temperature: -40°C ~ 125°C
MSL: 3 (168 Hours)
Package / Case: 16-SOIC
Voltage - Supply: 20V
Rise/Fall Time: 6.5ns/4.5ns
