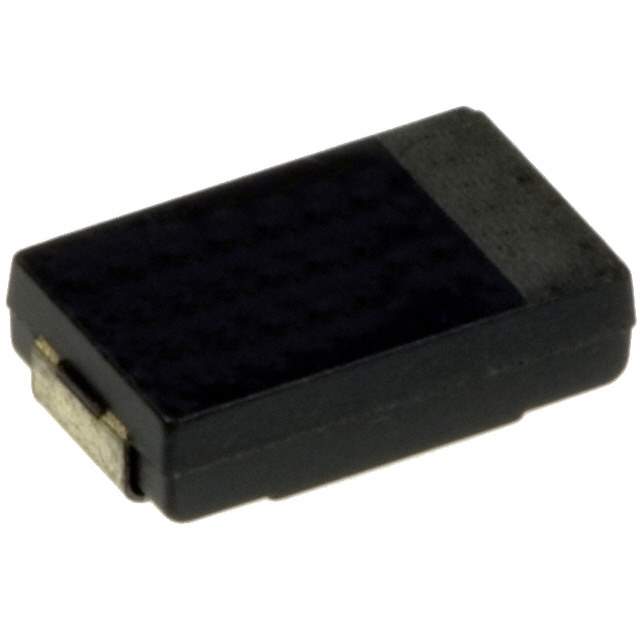

EEF-CX1D560R Real Image
Same model may have multiple batches, images only for reference.

EEF-CX1D560R

Part No EEF-CX1D560R
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 56UF 20% 20V SMD  /  56 µF 20 V Aluminum - Polymer Capacitors 2917 (7343 Metric) 40mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series SP-Cap CX
Package Tape & Reel
Product Status Not For New Designs
Type Polymer
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 40mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 3.2 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.075" (1.90mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Base Product Number EEF-CX
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names P18997DKR,P18997TR,EEFCX1D560R,P18997CT
Standard Package 3,500
Win Source Part Number 1005154-EEF-CX1D560R
Ultra Librarian 3D Model Ultra Librarian EEF-CX1D560R CAD Model

Description

The Panasonic Electronic Components EEF-CX1D560R is an aluminum - polymer capacitor with a capacitance of 56 µF and a tolerance of ±20%.

  • Capacitance: 56 µF
  • Tolerance: ±20%
  • Voltage Rating: 20 V
  • ESR: 40mOhm
  • Lifetime: 2000 Hrs @ 105°C
  • Temperature Range: -55°C to 105°C
  • Package: 2917 (7343 Metric)
  • Mounting: SMD
  • Series: SP-Cap CX
  • Application: General Purpose
