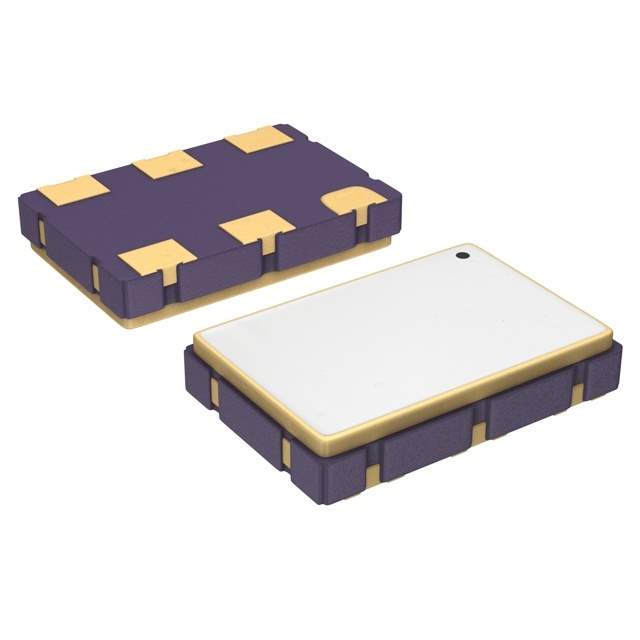

XLH735028.224000X Real Image
Same model may have multiple batches, images only for reference.

XLH735028.224000X

Part No XLH735028.224000X
Manufacturer IDT, Integrated Device Technology Inc
Catalog Oscillators
Description OSC XO 28.224MHZ HCMOS SMD / Oscillator XO 28.224MHz ±50ppm 15pF HCMOS 60% 3.3V 4-Pin CLLCC SMD
Datasheet
XLH735028.224000X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer IDT, Integrated Device Technology Inc
Series XPRESSO FXO-HC73
Packaging Cut Strip
Type XO (Standard)
Frequency 28.224MHz
Function Enable/Disable
Output HCMOS
Operating Supply Voltage 3.3V
Frequency Stability ±50ppm
Operating Temperature Range -20°C ~ 70°C
Maximum Supply Current 35mA
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.295" L x 0.205" W (7.50mm x 5.20mm)
Height - Seated (Maximum) 0.055" (1.40mm)
Win Source Part Number 774843-XLH735028.224000X
Popularity Medium
Supply and Demand Status Limited
Introduction Date October 28, 2016
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian XLH735028.224000X CAD Model

Description

The 774843-XLH735028.224000X is a crystal oscillator from IDT.

  • Series: XPRESSO FXO-HC73
  • Package: 4-SMD, No Lead
  • Frequency: 28.224MHz
  • Operating Supply Voltage: 3.3V
  • Frequency Stability: ±50ppm
  • Package Dimensions: 0.295" L x 0.205" W (7.50mm x 5.20mm)
  • Height - Seated (Max): 0.055" (1.40mm)
  • Popularity: Medium
  • Supply and Demand Status: Limited
