Same model may have multiple batches, images only for reference.

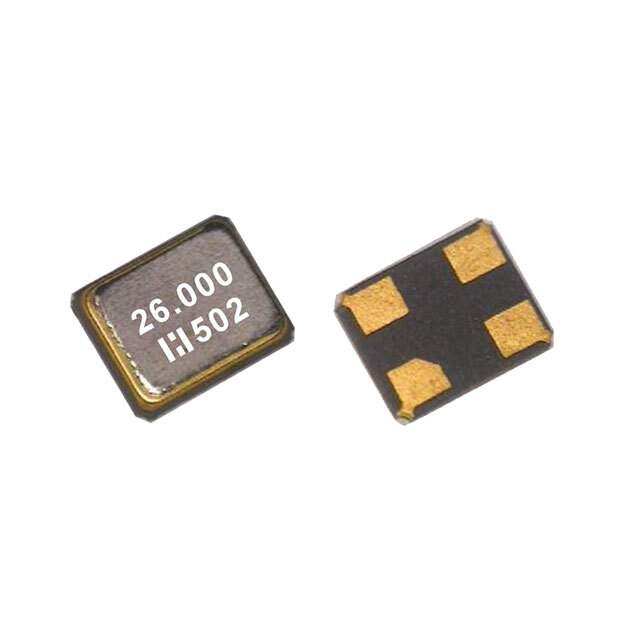

E1SB24E00001EE Real Image
Same model may have multiple batches, images only for reference.

E1SB24E00001EE

Part No E1SB24E00001EE
Manufacturer Hosonic Electronic Co., Ltd
Catalog Oscillators
Description XTAL 2016 24MHZ, 18PF/30/30/-40+ / 24 MHz ±30ppm Crystal 18pF 50 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr Hosonic Electronic Co., Ltd
Series E1S
Package Tape & Reel
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±30ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.020" (0.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Other Names 3186-E1SB24E00001EETBB8CT,3186-E1SB24E00001EETBB8TR,E1SB24E00001EETBB8,3186-E1SB24E00001EEDKR,3186-E1SB24E00001EETR,3186-E1SB24E00001EECT,3186-E1SB24E00001EETBB8TR-ND,E1SB24E00001EECBB8,3186-E1SB24E00001EETBB8CT-ND
Standard Package 3,000
Win Source Part Number 1158768-E1SB24E00001EE
Ultra Librarian 3D Model Ultra Librarian E1SB24E00001EE CAD Model

Description

The 1158768-E1SB24E00001EE is a MHz crystal product from Hosonic Electronic Co., Ltd.

  • Category: Crystals, Oscillators, Resonators - Crystals
  • Package: Tape and Reel
  • Standard Package: 3,000
  • Frequency: 24 MHz
  • Frequency Stability: ±30ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.60.0060
