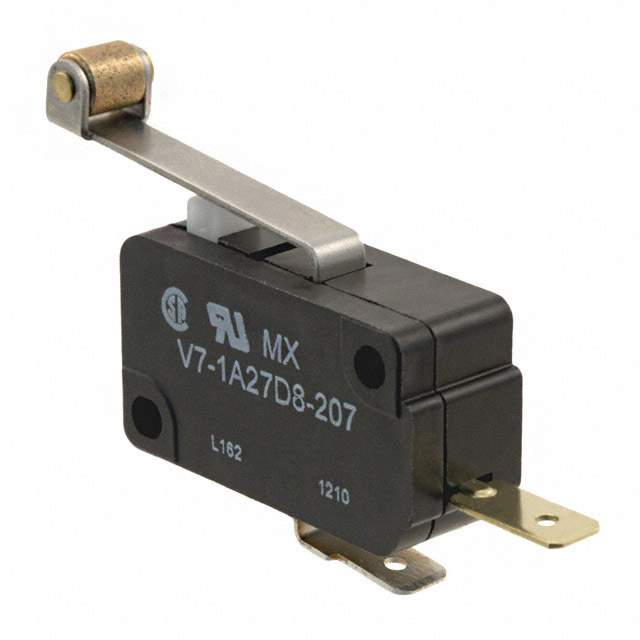

V7-1A27D8-207 Real Image
Same model may have multiple batches, images only for reference.

V7-1A27D8-207

Part No V7-1A27D8-207
Manufacturer Honeywell
Catalog Snap Action, Limit Switches
Description SWITCH SNAP ACT SPST-NO 5A 125V / Switch SPST-NO Chassis Mount
Datasheet
V7-1A27D8-207 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Limit Switches
Mfr Honeywell Sensing and Productivity Solutions
Series V7
Package Bulk
Circuit SPST-NO
Switch Function Off-Mom
Current Rating (Amps) 5A (AC)
Voltage Rating - AC 125 V
Actuator Type Lever, Roller
Mounting Type Chassis Mount
Termination Style Quick Connect - 0.187" (4.7mm)
Operating Force 86gf
Release Force 9.000gf
Pretravel 0.112" (2.85mm)
Differential Travel 0.025" (0.6mm)
Overtravel 0.065" (1.7mm)
Temperature Range - Operating -40°C ~ 85°C
Operating Position 0.803" (20.4mm)
Electrical Life 100,000 Cycles
Mechanical Life 10,000,000 Cycles
Base Product Number V7-1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.7000
Other Names 480-3180,V71A27D8207
Standard Package 100
Win Source Part Number 1036266-V7-1A27D8-207
Ultra Librarian 3D Model Ultra Librarian V7-1A27D8-207 CAD Model

Description

The V7 series limit switch is designed for use in various applications that require high electrical capacity and long mechanical life. The switch is equipped with a quick connect termination style of 0.187 inches (4.7mm), and it has a circuit configuration of SPST-NO.

  • Termination Style: 0.187 inches (4.7mm)
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Lever and roller
  • Operating Force: 86gf
  • Mechanical Life: 10,000,000 cycles
  • Pretravel: 0.112 inches (2.85mm)
  • Differential Travel: 0.025 inches (0.6mm)
  • Overtravel: 0.065 inches (1.7mm)
  • Operating Position: 0.803 inches (20.4mm)
  • Mounting: Chassis
  • Temperature Range: -40°C to 85°C
  • Manufacturer: Honeywell Sensing and Productivity Solutions
