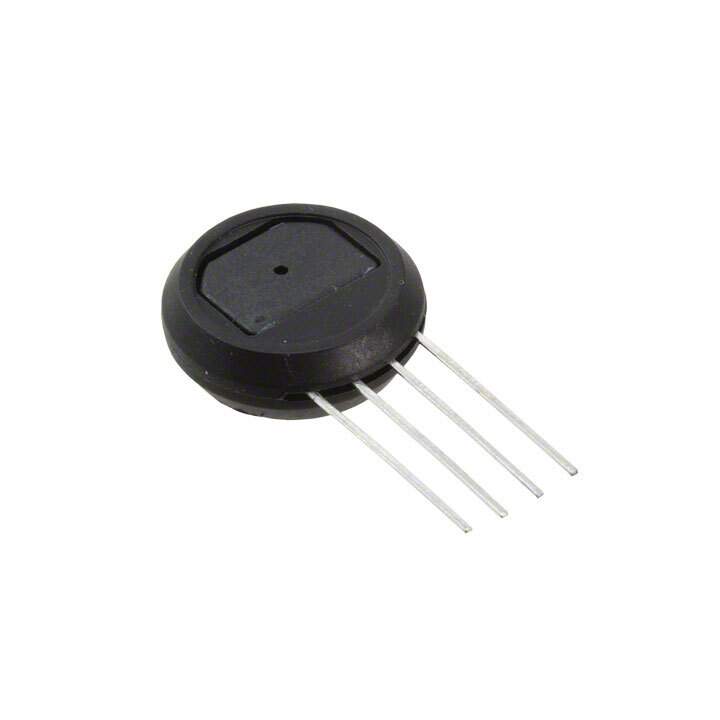

SSCSMNN001PGAA5 Real Image
Same model may have multiple batches, images only for reference.

SSCSMNN001PGAA5

Part No SSCSMNN001PGAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 1PSI GAUG 5V SIP / Pressure Sensor 1PSI (6.89kPa) Vented Gauge 0.5 V ~ 4.5 V 4-SIP Module
Datasheet
SSCSMNN001PGAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series TruStability® SSC
Package Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 1PSI (6.89kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 4.75V ~ 5.25V
Port Style No Port
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 10PSI (68.95kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 4-SIP Module
Supplier Device Package 4-SIP
Base Product Number SSCSMNN
Other Names 480-5503,SSCSMNN001PGAA5
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234411-SSCSMNN001PGAA5
Ultra Librarian 3D Model Ultra Librarian SSCSMNN001PGAA5 CAD Model

Description

The Honeywell Sensing and Productivity Solutions SSCSMNN001PGAA5 is a pressure sensor/transducer with a vented gauge pressure type.

  • Pressure Type: vented gauge
  • Operating Pressure: 1PSI (6.89kPa)
  • Maximum Pressure: 10PSI (68.95kPa)
  • Output Type: analog voltage
  • Output: 0.5 V ~ 4.5 V
  • Accuracy: ±0.25%
  • Port Style: No Port
  • Voltage Supply: 4.75V ~ 5.25V
  • Package/Case: 4-SIP module
  • Termination Style: PC Pin
  • Series: TruStability® SSC
  • Board Mount: Yes
