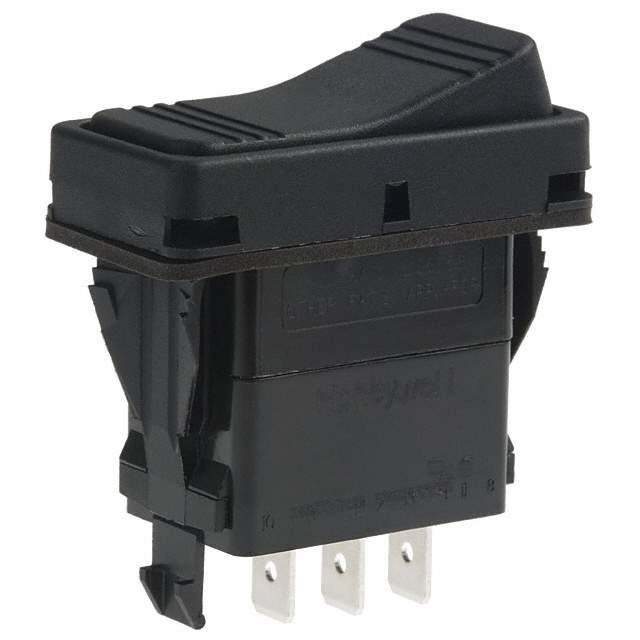

SRN91-13BB Real Image
Same model may have multiple batches, images only for reference.

SRN91-13BB

Part No SRN91-13BB
Manufacturer Honeywell
Catalog Rocker Switches
Description SWITCH ROCKER SPDT 15A 125V / Rocker Switch SPDT 15A (AC) 125 V Panel Mount, Snap-In
Datasheet
SRN91-13BB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Rocker Switches
Mfr Honeywell Sensing and Productivity Solutions
Series SRN
Package Bulk
Product Status Obsolete
Mounting Type Panel Mount, Snap-In
Circuit SPDT
Switch Function On-On
Current Rating (Amps) 15A (AC)
Voltage Rating - AC 125 V
Actuator Type Concave (Curved)
Color - Actuator/Cap Black
Actuator Marking No Marking
Termination Style Quick Connect - 0.250" (6.3mm)
Ingress Protection IP68 - Dust Tight, Waterproof
Panel Cutout Dimensions Rectangular - 36.83mm x 20.82mm
Temperature Range - Operating -40°C ~ 85°C
Mechanical Life 150,000 Cycles
Electrical Life 100,000 Cycles
Other Names 480-2150
Standard Package 20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1233224-SRN91-13BB
Ultra Librarian 3D Model Ultra Librarian SRN91-13BB CAD Model

Description

This SRN series rocker switch is an SPDT circuit switch with an on-on function.

  • Circuit: SPDT
  • Function: on-on
  • Termination Style: Quick Connect, 0.250" (6.3mm)
  • Actuator Type: Concave (curved)
  • Actuator: Non-illuminated
  • Ingress Protection: IP68 - Dust Tight
  • Voltage Rating: 125V AC
  • Panel Cutout Dimensions: Rectangular - 36.83mm x 20.82mm
  • Operating Temperature Range: -40°C to 85°C
  • Mounting: Panel Mounted with a Snap-in mounting type
  • Current Rating: 15A (AC)
  • Mechanical Life: 150,000 cycles
