Same model may have multiple batches, images only for reference.

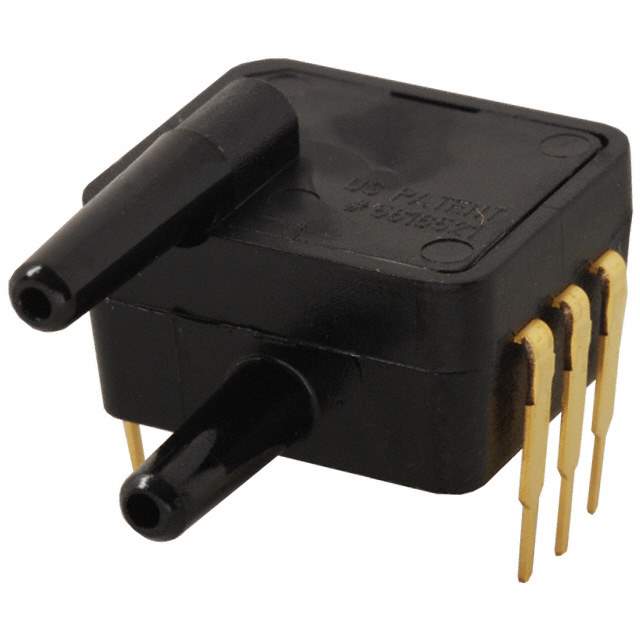

SCC15DD4 Real Image
Same model may have multiple batches, images only for reference.

SCC15DD4

Part No SCC15DD4
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR PRESS DIFF 15PSI  /  Pressure Sensor 15PSI (103.42kPa) Differential Male - 0.09" (2.29mm) Tube, Dual 40 mV ~ 95 mV 6-DIP Module
Datasheet
SCC15DD4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series SCC
Package Tray
Product Status Obsolete
Applications Board Mount
Pressure Type Differential
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 40 mV ~ 95 mV
Accuracy ±0.5%
Port Size Male - 0.09" (2.29mm) Tube, Dual
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 30PSI (206.84kPa)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 6-DIP Module
Other Names 480-2860
Standard Package 25
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1234805-SCC15DD4
Ultra Librarian 3D Model Ultra Librarian SCC15DD4 CAD Model

Description

The SCC15DD4 from Honeywell Sensing and Productivity Solutions is an electronic component that is used in pressure sensors and transducers.

  • Temperature-compensated: Yes
  • Application: board mount
  • Pressure Type: differential
  • Operating Pressure: 15PSI
  • Maximum Pressure: 30PSI
  • Port Size: male 0.09 inches
  • Port Style: dual, barbless
  • Package: 6-DIP module
  • Standard Package: 25
