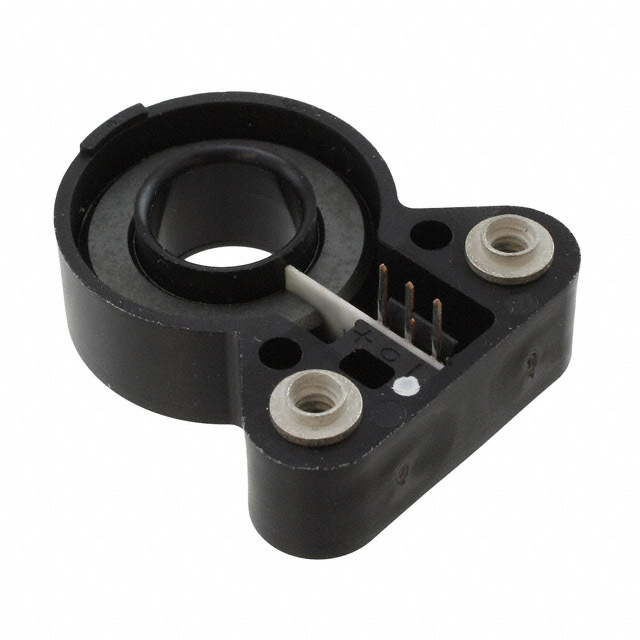

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Obsolete
For Measuring AC/DC
Sensor Type Hall Effect, Open Loop
Current - Sensing 400A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 5.8mV/N
Voltage - Supply 6V ~ 12V
Response Time 3µs
Current - Supply (Max) 20mA
Temperature Range - Operating -25°C ~ 85°C
Polarization Bidirectional
Mounting Type Through Hole
Case / Package Module, Single Pass Through
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1599008-CSLA2DK
Ultra Librarian 3D Model Ultra Librarian CSLA2DK CAD Model
