Same model may have multiple batches, images only for reference.

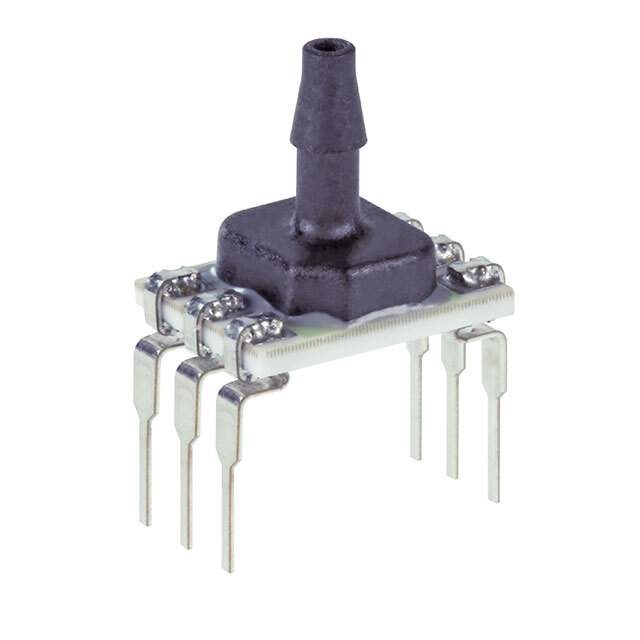

ABPDANT005PGAA5 Real Image
Same model may have multiple batches, images only for reference.

ABPDANT005PGAA5

Part No ABPDANT005PGAA5
Manufacturer Honeywell
Catalog Pressure Sensors, Transducers
Description SENSOR 5PSIG 0.08" 4.5V 6DIP / Pressure Sensor 5PSI (34.47kPa) Vented Gauge Male - 0.08" (1.93mm) Tube 0.5 V ~ 4.5 V 6-DIP Module
Datasheet
ABPDANT005PGAA5 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Honeywell Sensing and Productivity Solutions
Series ABP
Package Tray
Applications Medical Ventilation
Pressure Type Vented Gauge
Operating Pressure 5PSI (34.47kPa)
Output Type Analog Voltage
Output 0.5 V ~ 4.5 V
Accuracy ±0.25%
Voltage - Supply 5V
Port Size Male - 0.08" (1.93mm) Tube
Port Style Barbed
Features Amplified Output, Temperature Compensated
Termination Style PC Pin
Maximum Pressure 90PSI (620.53kPa)
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case 6-DIP Module
Supplier Device Package 6-DIP
Base Product Number ABPDANT005
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 1338066-ABPDANT005PGAA5
Ultra Librarian 3D Model Ultra Librarian ABPDANT005PGAA5 CAD Model

Description

The ABPDANT005PGAA5 is a pressure sensor from Honeywell Sensing and Productivity Solutions that is designed for medical ventilation applications.

  • Pressure: 5PSI
  • Maximum Pressure: 90PSI
  • Pressure Type: Vented Gauge
  • Output Type: Analog Voltage
  • Output Range: 0.5V to 4.5V
  • Accuracy: ±0.25%
  • Voltage Supply: 5V
  • Mounting: Through Hole
  • Package: 6-DIP Module
  • Port Size: 0.08"
  • Port Style: Barbed
  • Operating Temperature: -40°C to 85°C
  • RoHS Compliant: Yes
