Same model may have multiple batches, images only for reference.

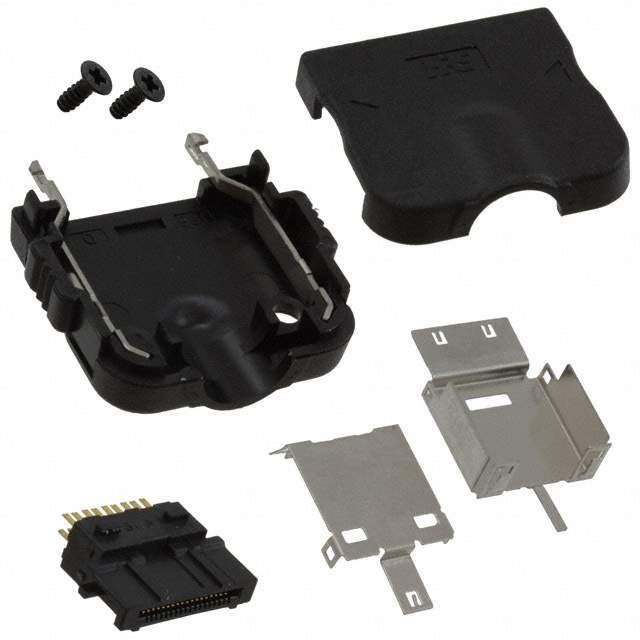

ST40X-18S-CV1 Real Image
Same model may have multiple batches, images only for reference.

ST40X-18S-CV1

Part No ST40X-18S-CV1
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Hirose Electric Co Ltd
Series ST
Package Tray
Product Status Obsolete
Connector Type Plug
Contact Type Non-Gender Specific
Number of Positions 18
Pitch 0.020" (0.50mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Cable Termination Solder
Wire Type Discrete
Features Shielded
Contact Finish Gold
Color Black
Other Names -ST40X-18S-CV1,ST40X18SCV1,H122322,ST40X-18S-CV1
Standard Package 50
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1293394-ST40X-18S-CV1
Ultra Librarian 3D Model Ultra Librarian ST40X-18S-CV1 CAD Model

Description

The Hirose Electric Co Ltd ST40X-18S-CV1 is a rectangular connector that is designed for free hanging and panel mount applications.

  • Series: ST
  • Positions: 18
  • Pitch: 0.020 inches (0.50mm)
  • Shielded: Yes
  • Contact Type: Non-Gender Specific
  • Contact Finish: Gold
  • Current: Up to 30mA
  • Status: Obsolete
  • Package: Tray
  • Standard Package: 50
