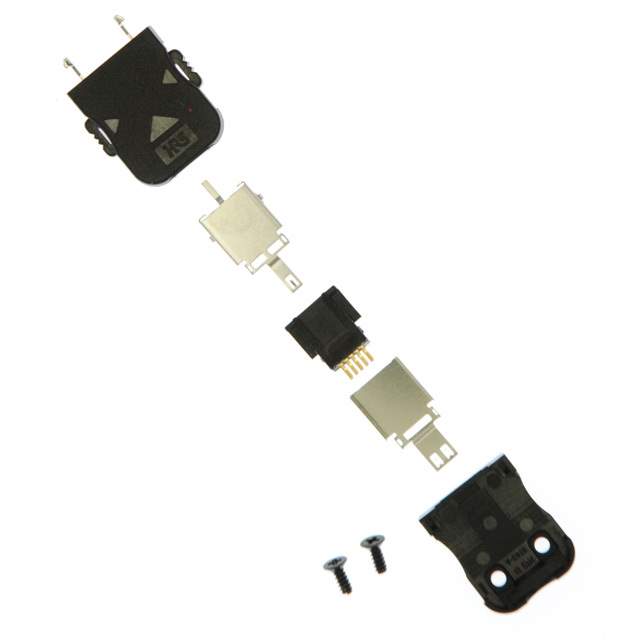

ST40X-10S-CV(30) Real Image
Same model may have multiple batches, images only for reference.

ST40X-10S-CV(30)

Part No ST40X-10S-CV(30)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Free Hanging, Panel Mount
Mfr Hirose Electric Co Ltd
Series ST
Package Tray
Connector Type Plug
Contact Type Non-Gender Specific
Number of Positions 10
Pitch 0.020" (0.50mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Cable Termination Solder
Wire Type Discrete
Features Shielded
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Color Black
Base Product Number ST40
Other Names H125253,241-0041-0-30
Standard Package 500
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1293401-ST40X-10S-CV(30)
Ultra Librarian 3D Model Ultra Librarian ST40X-10S-CV(30) CAD Model

Description

The Hirose Electric Co Ltd ST40X-10S-CV(30) is a 10-position, 1-row, shielded plug connector with a pitch of 0.020" (0.50mm).

  • Positions: 10
  • Rows: 1
  • Pitch: 0.020" (0.50mm)
  • Color: Black
  • Contact Type: Non-Gender Specific
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00µin (0.203µm)
  • Wire Type: Discrete
  • Termination: Solder
  • Package: Trays
  • Applications: Free-Hanging (In-Line)
  • ECCN: EAR99 Compliant
